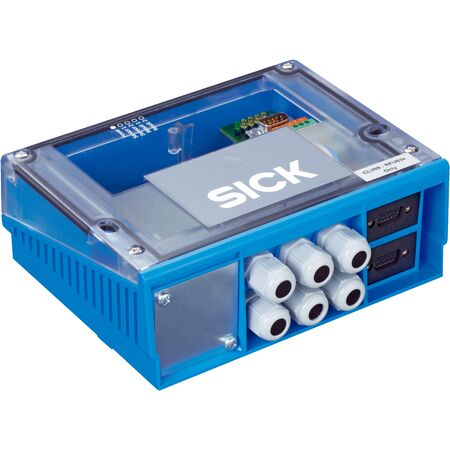

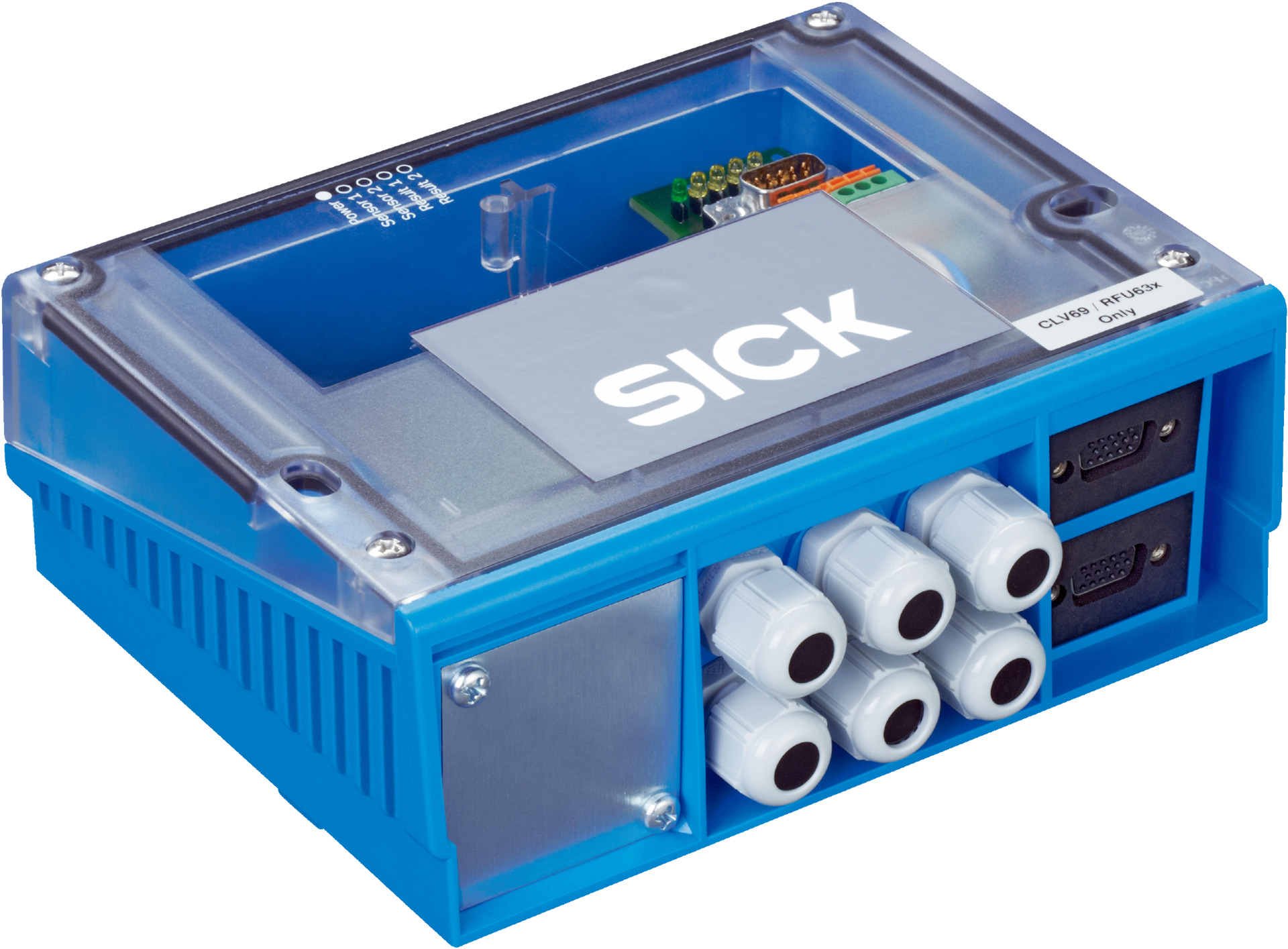

Modular Sensor Connection Module | IP65 Rated | Supports Multiple Interfaces | by SICK
The Modular Sensor Connection Module is designed for seamless industrial sensor integration, featuring an IP65-rated polycarbonate housing and support for multiple interfaces including Ethernet and PROFIBUS DP. Ideal for automation systems, this module simplifies sensor connections while ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Power consumption: Sensor power consumption + 0.5 W
- Housing: Polycarbonate
- Enclosure rating: IP65
- Protection class: III
- Scanner connection: 15-pin D-Sub HD female connector
- Service plug: 9-pin D-Sub plug (internal)
- Interfaces: Ethernet, RS-232, TCP/IP, RS-485, Serial (RS-232, RS-422, RS-485), CAN, PROFIBUS DP, DeviceNet™
- Optical indicators: 5 LEDs
- Ambient operating temperature: -35 °C to +40 °C
- Storage temperature: -35 °C to +70 °C
- Permissible relative humidity: < 90%, Non-condensing
- Configuration software: SOPAS ET
- Dimensions (H x L x W): 70mm x 192mm x 167mm
- Weight: 0.8 kg
Key Features
- Modular connection module for two sensors with 2 A fuse
- Supports cloning module (CMC), display module (CMD), power supply module (CMP), and fieldbus gateway (CMF)
- Compatible with PROFIBUS DP, Ethernet, DeviceNet™
- Housing made of durable polycarbonate with IP65 enclosure rating
- Multiple interface options including Ethernet, RS-232, RS-422, RS-485, CAN, PROFIBUS DP, and DeviceNet™
- 5 LED optical indicators for status monitoring
- Configuration via SOPAS ET software
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper integration and compliance with electrical standards.
Applications
- Industrial automation sensor integration
- Modular connection for multiple sensor types
- Fieldbus communication in manufacturing environments
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enables efficient sensor integration reducing system complexity and waste
- Durable IP65 housing extends product life reducing replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK CDM420-0007 Modular Connection Module is available for immediate purchase, ideal for industrial sensor integration and automation systems.
