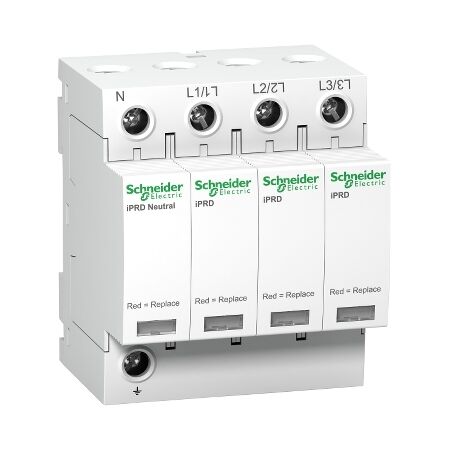

Modular Surge Arrester IPRD 40R 40K 350V | 3P+N System | 20kA Nominal Discharge | by Clipsal
The Modular Surge Arrester IPRD 40R 40K 350V is designed for 3-phase plus neutral (3P+N) systems, providing robust surge protection with a nominal discharge current of 20kA and a maximum discharge current of 40kA. Ideal for residential, commercial, and industrial applications, it features a visual status indicator and remote transfer contact for monitoring, ensuring your sensitive equipment remains protected from electrical surges.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Surge Arrester IPRD 40R 40K 350V | 3P+N System | 20kA Nominal Discharge | by Clipsal
Brand: Clipsal
SKU: SCHA9L40601
Alternatively Known As: Surge Protection Device, SPD, Modular Surge Arrester, Clipsal Surge Protector, SCHA9L40601, 3P+N Surge Arrester
Technical Specifications
- Type: Modular surge arrester
- System: 3P+N (three phase plus neutral)
- Nominal voltage: 350V
- Nominal discharge current (In): 20kA (8/20μs)
- Maximum discharge current (Imax): 40kA (8/20μs)
- Voltage protection level (Up): ≤1.5kV
- Remote transfer contact: Yes
- Mounting: DIN rail
- Status indicator: Visual
- Dimensions (H x L x W): 90mm x 68mm x 72mm
- Weight: 0.4 kg
Key Features
- Modular surge arrester for 3-phase + neutral (3P+N) systems
- Nominal discharge current: 20kA (8/20μs)
- Maximum discharge current: 40kA (8/20μs)
- Voltage protection level: ≤1.5kV
- Remote transfer contact for status monitoring
- DIN rail mountable for easy installation
- Visual indicator for device status
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Residential and commercial electrical distribution boards
- Industrial facilities requiring surge protection
- Data centers and telecommunication installations
- Critical infrastructure and sensitive electronic equipment
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Protects sensitive equipment from electrical surges, reducing electronic waste
- Enhances system reliability, minimizing downtime and resource consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IPRD 40R 40K 350V Modular Surge Arrester (SCHA9L40601) is available for immediate purchase. Ideal for protecting electrical systems in residential, commercial, and industrial environments.
