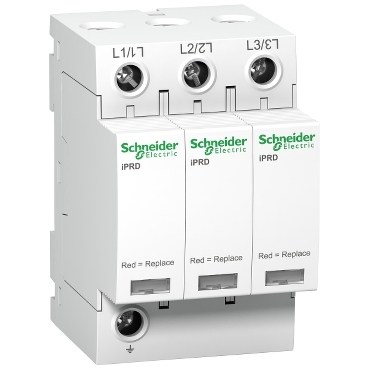

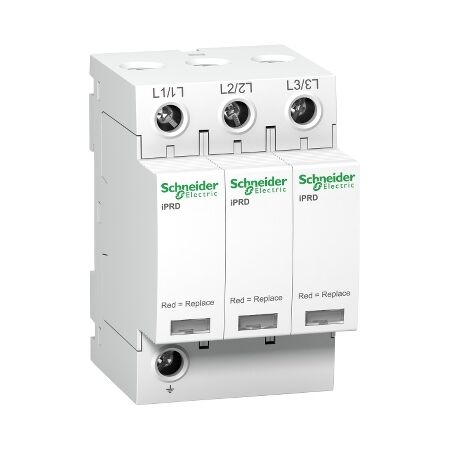

Modular Surge Arrester IPRD 65R | 65 kA Surge Capacity | 350V AC | 3P+N Configuration | @Pack of 1 | by Clipsal
The Modular Surge Arrester IPRD 65R is designed for three-phase systems, offering a high surge capacity of 65 kA per pole and a nominal voltage of 350V AC. Ideal for commercial and industrial switchboards, it features a remote transfer contact for status monitoring and plug-in replaceable modules for easy maintenance, ensuring reliable protection for sensitive electronic equipment against transient overvoltages.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Surge Arrester IPRD 65R | 65 kA Surge Capacity | 350V AC | 3P+N Configuration | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHA9L65301
Alternatively Known As: ['Clipsal surge arrester', 'IPRD65R surge protector', 'SCHA9L65301', '3 phase surge protection device', 'Modular SPD 65kA']
Technical Specifications
- Type: Modular surge arrester
- Configuration: 3P+N (three phase plus neutral)
- Maximum discharge current (Imax): 65 kA per pole
- Nominal voltage (Uc): 350V AC
- Remote transfer contact: Yes
- Visual status indicator: Yes
- Mounting: DIN rail
- Replaceable plug-in modules
- Dimensions (H x L x W): 90mm x 70mm x 108mm
- Weight: 0.5 kg
Key Features
- Modular surge arrester for three-phase systems with neutral (3P+N)
- High surge capacity: 65 kA per pole
- Nominal voltage: 350V
- Remote transfer contact for status monitoring
- Plug-in replaceable modules for easy maintenance
- Visual status indicator for each pole
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Commercial and industrial electrical switchboards
- Main and sub-distribution boards
- Protection of sensitive electronic equipment from transient overvoltages
- Facilities requiring surge protection for three-phase power systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Protects electrical and electronic equipment, reducing waste from damage
- Enhances system reliability, minimizing downtime and resource use
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal IPRD 65R 65 KA 350V 3P With RE (SCHA9L65301) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring robust surge protection.
