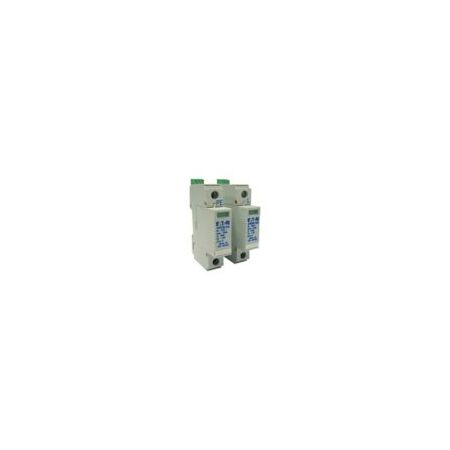

Modular Surge Diverter 60kA | Single-Phase | Class 2 Protection | DIN Rail Mount by Eaton
Protect your electrical systems with this modular surge diverter, featuring a 60kA maximum discharge current and single-phase connection—ideal for point of entry protection. Built for compliance with AS/NZS 3000 standards, it ensures safety and longevity of your installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Modular Surge Diverter 60kA | Single-Phase | Class 2 Protection | DIN Rail Mount by Eaton
Brand: Eaton
SKU: SPDT60-255
Alternatively Known As: Surge Protector, Surge Suppressor, SPD, Surge Diverter, DIN Rail Surge Protector
Technical Specifications
- Fault current: 60 kA
- Connection: Single-phase
- Phase: Single-phase
- Class: Class 2 Cat B and Cat C
- Mounting Method: DIN rail 35 mm
- Configuration: Diverter
- Maximum continuous operating voltage: 255 V N-E
- Maximum discharge current 8x20µs (Imax): 60 kA
- Nominal discharge current 8x20µs (In): 40 kA
- Dimensions (H x L x W): 90mm x 68mm x 17mm
- Weight: 0.1 kg
Key Features
- Single-phase connection
- 60 kA maximum discharge current
- Class 2 Cat B and Cat C protection
- Modular design for DIN rail 35 mm mounting
- 1 mode surge diverter
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Point of entry protection for electrical systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Protects electrical equipment from surge damage, reducing electronic waste
- Enhances longevity of electrical installations
Warranty Information
Warranty information available upon request from manufacturer.
Available Now
The Eaton 1Ph 60kA 1 Mode DIN N-E Modular Surge Diverter is available for immediate purchase, ideal for protecting electrical systems at the point of entry.
