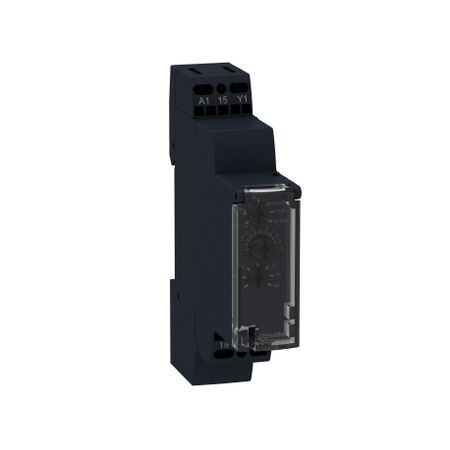

Modular Timer Relay 8A | 1s-100h | 12-240V AC/DC | Spring Terminals by Clipsal
Modular timer relay with 8A current and 1s to 100h delay—ideal for industrial automation and commercial lighting control. Built for versatility, with multifunction capabilities and easy spring terminal connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Timer Relays, Modular timing relay, 8A, 1CO, 1s..100h, multifunction, spring terminals, 12...240V AC DC
Brand: Clipsal
SKU: RE17RMMWS
Alternatively Known As: Modular Timing Relay, Timer Relay, 8A Relay
Technical Specifications
- Rated current: 8A
- Control type: Selector switch front panel
- Electrical durability: 100,000 cycles at 8A
- Mechanical durability: 10,000,000 cycles
- Insulation resistance: 100 MOhm at 500 V DC
- IP Rating: IP20 (terminal block), IP40 (housing), IP50 (front panel)
- Ambient temperature for operation: -20...60 °C
- Time delay range: 1s to 100h
- Dimensions (H x L x W): 90mm x 72mm x 17.5mm
- Weight: 0.07 kg
Key Features
- Modular design with multifunction capabilities.
- Wide voltage range of 12...240V AC/DC.
- Spring terminals for easy connections.
- LED indicators for operational status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, machinery control
- Commercial: Building management systems, lighting control
- General: Any application requiring timed relay functions
Standards & Compliance
- Complies with IEC 61000-6-4 and IEC 61812-1 for safety and performance.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Timer Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
