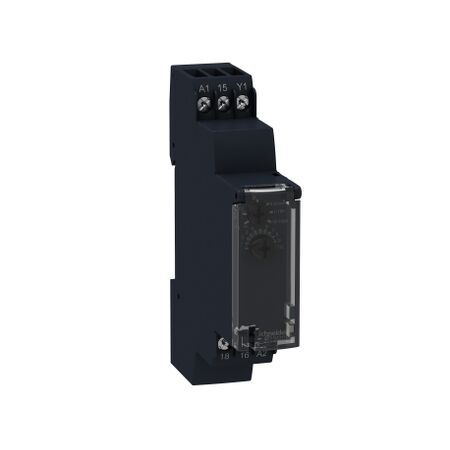

Modular Timer Relay 8A | 1s to 100h | 24V-240V AC/DC by Clipsal
Modular timer relay with 8A capacity and adjustable time delay from 1 second to 100 hours—ideal for industrial automation and commercial building management. Built for precision timing, with wide voltage range and LED status indicators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Timer Relays, Modular timing relay, 8A, 1CO, 1s..100h, single interval relay, 24V DC 24...240V AC DC
Brand: Clipsal
SKU: RE17RBMU
Alternatively Known As: Modular Timing Relay, Interval Timer Relay, 8A Relay
Technical Specifications
- Rated current: 8A
- Control type: Selector switch
- Electrical durability: 100,000 cycles at 8A
- Mechanical durability: 10,000,000 cycles
- Insulation resistance: 100 MOhm at 500 V DC
- IP Rating: IP20 (terminal block), IP40 (housing), IP50 (front panel)
- Ambient temperature range: -20°C to 60°C
- Power consumption: 0...32 VA at 240 V AC
- Dimensions (H x L x W): 90mm x 72mm x 17.5mm
- Weight: 0.08 kg
Key Features
- Modular design for easy integration.
- Wide voltage range: 24V DC to 240V AC/DC.
- Adjustable time delay from 1 second to 100 hours.
- LED indicators for operational status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, machinery control
- Commercial: Building management systems, HVAC control
Standards & Compliance
- Complies with IEC 61000 series for electromagnetic compatibility.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Timer Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
