Modular Timer Relay 8A | 1s-100h | 24V DC/240V AC | Multifunction by Clipsal
Modular timer relay with 8A current and 1s to 100h delay—ideal for automation and building management. Built for industrial and commercial use, with multifunctional settings and LED indicators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

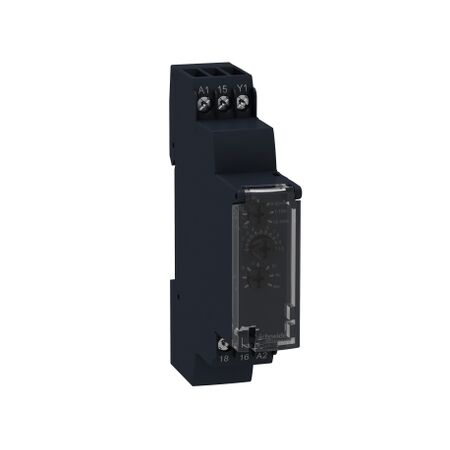

Product Name/Title: Harmony Timer Relays, Modular timing relay, 8 A, 1 CO, 1 s..100 h, multifunction, 24 V DC / 24...240 V AC/DC
Brand: Clipsal
SKU: RE17RMMU
Alternatively Known As: Modular Timing Relay, Timer Relay, Multifunction Timer Relay
Technical Specifications
- Rated current: 8 A
- Control type: Selector switch front panel
- Electrical durability: 100,000 cycles at 8 A
- Mechanical durability: 10,000,000 cycles
- Insulation resistance: 100 MOhm at 500 V DC
- IP Rating: IP20 (terminal block), IP40 (housing), IP50 (front panel)
- Ambient temperature for operation: -20...60 °C
- Time delay range: 1 s to 100 h
- Dimensions (H x L x W): 90mm x 72mm x 17.5mm
- Weight: 0.07 kg
Key Features
- Multifunctional timing relay with various time delay options.
- Rated current of 8 A and voltage range of 24 V DC / 24...240 V AC/DC.
- LED indicators for operational status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems
- Commercial: Building management systems
- General: Any application requiring timed control
Standards & Compliance
- Complies with IEC 61812-1 and other relevant standards.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Timer Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
