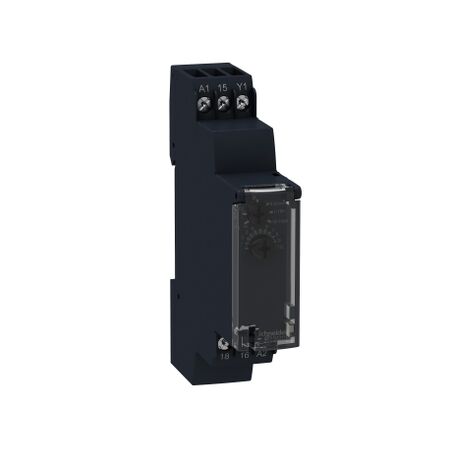

Modular Timer Relay 8A | 1s-100h Delay | 24-240V AC/DC by Clipsal
Modular timer relay with 8A current and adjustable 1s to 100h delay—ideal for automation and building management systems. Built for industrial and commercial use, with wide voltage range and LED indicators.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Timer Relays, Modular timing relay, 8 A, 1 CO, 1 s..100 h, on delay, 24 V DC / 24...240 V AC/DC
Brand: Clipsal
SKU: RE17RHMU
Alternatively Known As: Modular Timing Relay, Timer Relay, Delay Relay
Technical Specifications
- Rated current: 8 A
- Control type: Selector switch front panel
- Electrical durability: 100,000 cycles at 8 A
- Mechanical durability: 10,000,000 cycles
- IP Rating: IP20 (terminal block), IP40 (housing), IP50 (front panel)
- Operating temperature: -20...60 °C
- Relative humidity: 93% without condensation
- Power consumption: 0...32 VA at 240 V AC
- Dimensions (H x L x W): 90mm x 72mm x 17.5mm
- Weight: 0.07 kg
Key Features
- Modular design for easy integration.
- Wide voltage range: 24 V DC / 24...240 V AC/DC.
- Adjustable time delay from 1 second to 100 hours.
- LED indicators for operational status.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems
- Commercial: Building management systems
- General: Any application requiring timed relay control
Standards & Compliance
- Complies with IEC standards for safety and performance.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Timer Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
