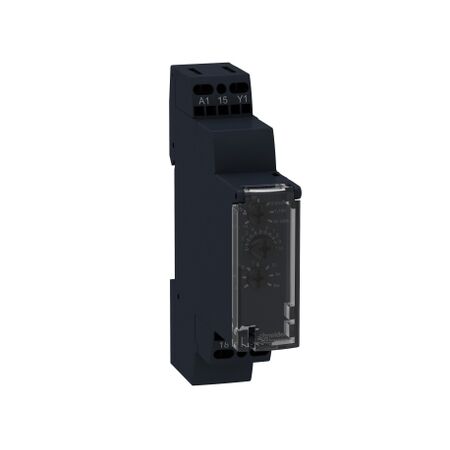

Modular Timing Relay 8A | 0.1s-100h | 12-240V AC/DC | Multifunction by Clipsal
Modular timing relay with 8A current and 0.1s to 100h delay—ideal for industrial automation and commercial building management. Built for precision, with multifunctional capabilities and wide voltage compatibility.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Harmony Timer Relays, Modular timing relay, 8A, 1CO, 0.1s..100h, multifunction, 12...240V AC DC
Brand: Clipsal
SKU: RE17RMMW
Alternatively Known As: Modular Timing Relay, Timing Relay 8A, Harmony Timer Relay
Technical Specifications
- Rated current: 8A
- Control type: Selector switch front panel
- Electrical durability: 100,000 cycles at 8A
- Mechanical durability: 10,000,000 cycles
- Insulation resistance: 100 MOhm at 500 V DC
- IP Rating: IP20 (terminal block), IP40 (housing), IP50 (front panel)
- Ambient temperature for operation: -20...60 °C
- Time delay range: 0.1s to 100h
- Dimensions (H x L x W): 90mm x 72mm x 17.5mm
- Weight: 0.07 kg
Key Features
- Multifunctional timing relay with a wide time delay range from 0.1s to 100h.
- Rated current of 8A with 1 changeover contact (1CO).
- Compatible with 12...240V AC/DC supply voltage.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal performance.
Applications
- Industrial: Automation systems, machinery control
- Commercial: Building management systems, HVAC control
- General: Any application requiring precise timing control
Standards & Compliance
- Complies with IEC 61000-6-3 and IEC 61812-1 for safety and performance.
Environmental Benefits
- Complies with environmental standards and regulations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Harmony Timer Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise timing control.
