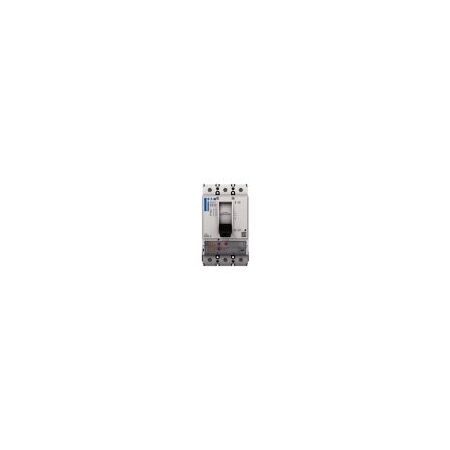

Molded Case Circuit Breaker 100A 4P | Electronic Release System & USB Interface | IP20 to IP66 by Eaton
Molded case circuit breaker with 100A capacity and electronic release system—ideal for industrial and commercial electrical protection. Built for safety compliance, featuring a USB interface for configuration and robust IP20 to IP66 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker 100A 4P | Electronic Release System & USB Interface | IP20 to IP66 by Eaton
Brand: Eaton
SKU: Y7-191642
Alternatively Known As: Molded Case Circuit Breaker, MCCB 100A 4P, NZM2 Circuit Breaker, Eaton NZM2 PXR20, Electronic Circuit Breaker
Technical Specifications
- Dimensions (H x L x W): 160mm x 190mm x 145mm
- Weight: 2.9 kg
Key Features
- Electronic release system with LSI overload protection
- Delayed and non-delayed short-circuit protective device
- R.m.s. value measurement and thermal memory
- USB interface for configuration and test function with Power Xpert Protection Manager software
- Optionally communication-capable with interface module and internal Modbus RTU module or CAM
- Four-pole circuit breaker with screw terminal connections
- Rated short-circuit breaking capacity up to 85 kA at 230 V
- Ambient operating temperature range from -25 °C to 70 °C
- Protection against direct contact: Finger and back-of-hand proof to DIN EN 50274/VDE 0106 part 110
- Degree of protection IP20 (basic) and up to IP66 with door coupling rotary handle
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into switchgear.
Applications
- Use in unearthed supply systems at 690 V
- Industrial and commercial electrical protection
- Motor drive protection and general circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Energy efficient protection reducing electrical faults and downtime
Warranty Information
Standard manufacturer warranty applies. Please refer to Eaton's official warranty policy for details.
Available Now
The Eaton Moeller NZM2 PXR20 Molded Case Circuit Breaker 100A 4P is available for immediate purchase. Ideal for industrial and commercial electrical protection applications.
