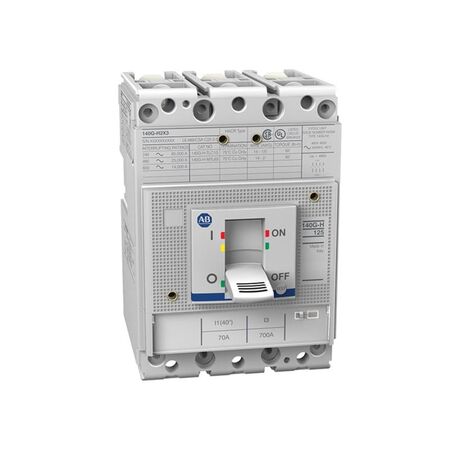

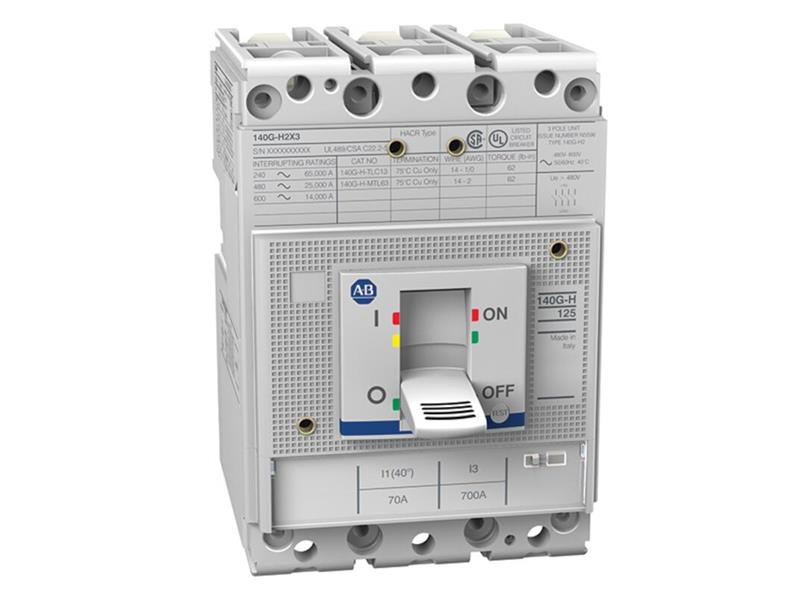

Molded Case Circuit Breaker 125A H Frame | 65 kA Interrupting Capacity | Thermal-Magnetic Trip Unit | by Allen-Bradley
The Molded Case Circuit Breaker 125A H Frame is designed for reliable electrical protection in industrial and commercial applications. With a robust 65 kA interrupting capacity at 480V and a thermal-magnetic trip unit, it ensures safety and compliance. Ideal for motor control centers and power distribution, this breaker is a must-have for qualified electricians looking to enhance system reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Current Rating: 125A
- Interrupting Capacity: 65 kA at 480V
- Trip Unit: Thermal-magnetic fixed thermal and fixed magnetic
- Poles: 3
- MCCB Rating: 80 percent
- Bus Bar Mounting: None
- Dimensions (H x L x W): 150mm x 80mm x 100mm
- Weight: 5 kg
Key Features
- 125A H frame current limiting
- 65 kA interrupting capacity at 480V
- Thermal-magnetic trip unit - fixed thermal and fixed magnetic
- 3 poles
- 80 percent MCCB rating
- No bus bar mounting required
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial electrical panels
- Commercial power distribution
- Motor control centers
- Electrical protection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical faults and fires, enhancing safety and reducing environmental hazards.
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
Available for immediate purchase, ideal for industrial and commercial electrical protection applications.
