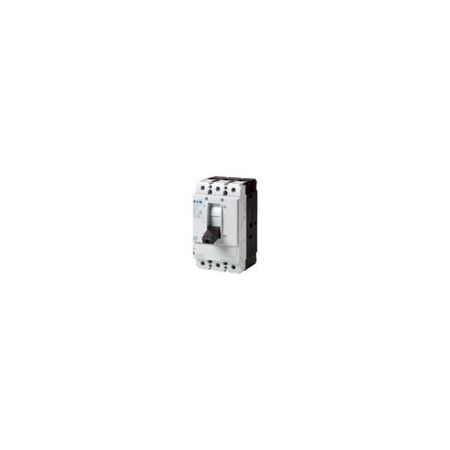

Molded Case Circuit Breaker 160A | 690V | 150kA Short-Circuit Capacity | IP66 Protection by Eaton
Molded case circuit breaker rated at 160A and 690V, designed for industrial electrical protection. Ideal for branch and feeder circuits, it features a robust IP66 front side and a mechanical lifespan of 20,000 operations, ensuring reliability and safety in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker 160A | 690V | 150kA Short-Circuit Capacity | IP66 Protection by Eaton
Brand: Eaton
SKU: Y7-102684
Alternatively Known As: Eaton NZM Molded Case Circuit Breaker 160A, Eaton NS2-160-NA MCCB, Eaton Moeller NZM Switch Disconnector
Technical Specifications
- Rated current: 160 A
- Voltage rating: 690 V
- Number of poles: Three-pole
- Short-circuit breaking capacity: 150 kA at 230-415 V
- Rated insulation voltage (Ui): 1000 V AC
- Rated impulse withstand voltage (Uimp): 8000 V at main contacts
- Mounting method: Fixed DIN rail or built-in
- Degree of protection: IP20 basic, IP66 front side with door coupling rotary handle
- Electrical lifespan: up to 10,000 operations
- Mechanical lifespan: 20,000 operations
- Ambient operating temperature: -25 °C to 70 °C
- Connection type: Screw terminal
- Handle type: Rocker lever
- Power loss: 24.3 W
- Dimensions (H x L x W): 185mm x 142mm x 105mm
- Weight: 2.4 kg
Key Features
- Three-pole molded case switch-disconnector
- Rated current 160 A with rated operational current 160 A
- Short-circuit breaking capacity up to 150 kA at 230-415 V
- Screw connection type for main circuit
- Rocker lever handle type
- Fixed DIN rail or built-in mounting options
- IP20 basic protection, IP66 front side with door coupling rotary handle
- Mechanical lifespan of 20,000 operations and electrical lifespan up to 10,000 operations
- Ambient operating temperature range from -25 °C to 70 °C
- Power loss approximately 24.3 W
Professional Installation Requirements
- Installation must be performed by a qualified electrician following local electrical codes and standards to ensure safety and compliance.
Applications
- Branch circuits
- Feeder circuits
- Industrial electrical protection
- Motor drive protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- High durability reduces replacement frequency and waste
- Energy efficient with low power loss of 24.3 W
Warranty Information
Warranty terms as per Eaton standard product warranty policy. Typically covers manufacturing defects for a specified period.
Available Now
The Eaton Moeller series NZM NS2-160-NA Molded Case Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
