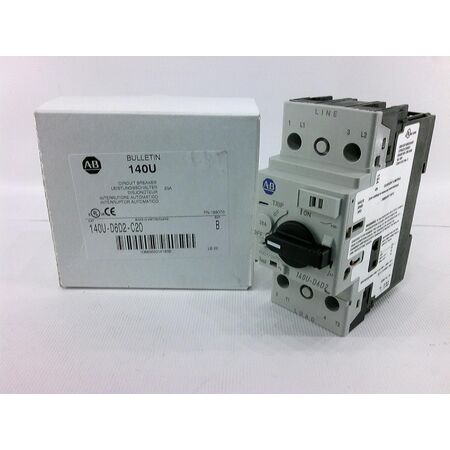

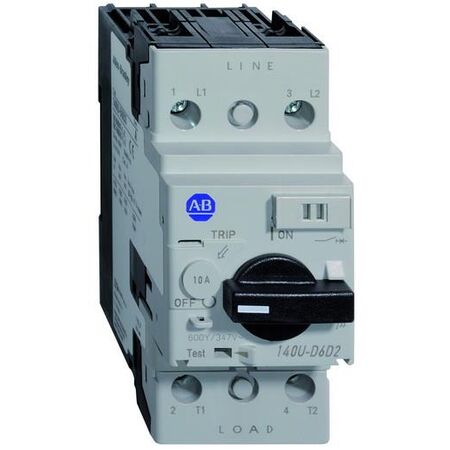

Molded Case Circuit Breaker 20A 2-Pole | D-Frame Design | 60-69 kA Interrupting Capacity | by Allen-Bradley
The Molded Case Circuit Breaker 20A 2-Pole is engineered for robust electrical protection, featuring a D-frame design and a high interrupting capacity of 60-69 kA. Ideal for industrial and commercial applications, it offers fixed thermal and adjustable magnetic trip settings, ensuring reliable performance in motor protection and control circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Series: 140U
- Frame Type: D-Frame
- Interrupting Capacity: 60-69 kA
- Poles: 2
- Current Rating: 20 A
- Trip Type: Fixed Thermal / Adjustable Magnetic
- Dimensions (H x L x W): 100mm x 85mm x 70mm
- Weight: 2.5 kg
Key Features
- Molded case circuit breaker with D-frame design
- Fixed thermal and adjustable magnetic trip settings
- 2-pole configuration for 20 ampere current rating
- High interrupting capacity of 60-69 kA
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards.
Applications
- Industrial electrical panels
- Commercial electrical distribution
- Motor protection and control circuits
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps protect electrical systems from overload and short circuits, reducing risk of fire and equipment damage
Warranty Information
Radwell 2-year warranty included; factory warranty does not apply.
Available Now
The Allen-Bradley 140UD6D2C20 Molded Case Circuit Breaker is discontinued by the manufacturer but available for immediate purchase through Radwell with a 2-year warranty. Ideal for industrial and commercial electrical protection applications.
