Molded Case Circuit Breaker 20A | 25 kA Breaking Capacity | IP20 Protection | Eaton
Molded case circuit breaker with a 20A rating and 25 kA breaking capacity—ideal for industrial and commercial electrical protection. Built for reliable circuit safety, with thermomagnetic release and IP20 protection for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

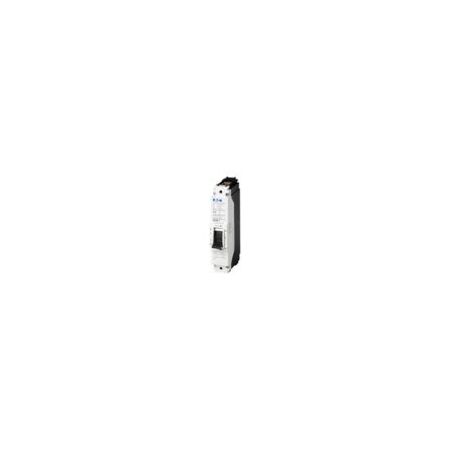

Product Name/Title: Molded Case Circuit Breaker 20A | 25 kA Breaking Capacity | IP20 Protection | Eaton
Brand: Eaton
SKU: Y7-152531
Alternatively Known As: Eaton NZM1 Circuit Breaker 20A, Eaton Molded Case Circuit Breaker 20 Amp, NZMB1-1-AF20 MCCB
Technical Specifications
- Amperage Rating: 20 A
- Voltage Rating: 230 V AC
- Rated Short-Circuit Breaking Capacity (Ics): 25 kA at 230 V and 400/415 V
- Rated Short-Circuit Making Capacity (Icm): Up to 55 kA at 240 V
- Degree of Protection: IP20 (basic), IP40 with insulating surround, IP66 with door coupling rotary handle
- Operating Temperature Range: -25 °C to 70 °C
- Mechanical Lifespan: 20,000 operations
- Shock Resistance: 20 g (half-sinusoidal shock 20 ms)
- Mounting Method: Fixed built-in device
- Terminal Capacity: Up to 95 mm² copper conductor
- Release System: Thermomagnetic
- Pollution Degree: 3
- Rated Insulation Voltage (Ui): 400 V AC
- Power Loss: 9.8 W
- Dimensions (H x L x W): 145mm x 88mm x 30mm
- Weight: 0.439 kg
Key Features
- Thermomagnetic release for overload and short-circuit protection
- Single-pole circuit breaker with 20A amperage rating
- Rated short-circuit breaking capacity of 25 kA at 230V and 400/415V
- IP20 degree of protection in operating controls area
- Front side connection for main current circuit
- Mechanical lifespan of 20,000 operations
- Shock resistance of 20 g (half-sinusoidal shock 20 ms)
- Suitable for damp heat environments per IEC 60068-2-78 and IEC 60068-2-30
- Fixed overload releases Ir with maximum back-up fuse capability
- Rated insulation voltage of 400 V AC
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchgear assemblies.
Applications
- Industrial electrical panels
- Commercial electrical distribution
- Protection of electrical circuits in machinery and equipment
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and control gear
Environmental Benefits
- Helps prevent electrical fires and equipment damage by reliable circuit protection
- Supports energy efficiency by protecting electrical systems from overloads
Warranty Information
Standard Eaton warranty applies; typically 1-2 years against manufacturing defects.
Available Now
The Eaton Moeller NZMB1-1-AF20 Molded Case Circuit Breaker 20A is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
