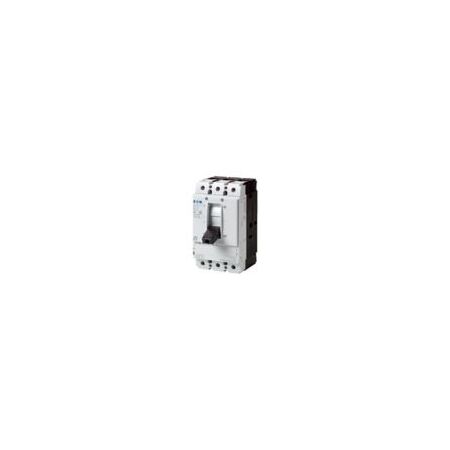

Molded Case Circuit Breaker 250A | 3 Pole | 690V Rated | IP20 Protection by Eaton
Molded case circuit breaker with a 250A rating and 3 poles—ideal for industrial electrical distribution and protection. Built for compliance with IEC/EN 60947 standards, featuring a robust design for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker 250A | 3 Pole | 690V Rated | IP20 Protection by Eaton
Brand: Eaton
SKU: Y7-266010
Alternatively Known As: Molded Case Circuit Breaker 250A, NZM N2 Switch Disconnector, Eaton NZM 250A Circuit Breaker, 3 Pole MCCB 250 Amp
Technical Specifications
- Dimensions (H x L x W): 185mm x 142mm x 105mm
- Weight: 1.9 kg
Key Features
- Switch-disconnector with 3 poles and 250 A amperage rating
- Rated operational voltage up to 690 V
- Rated short-time withstand current of 3.5 kA
- Mechanical lifespan of 20,000 operations and electrical lifespan up to 10,000 operations depending on voltage
- IP20 degree of protection on front side, with options for IP40 and IP66 with accessories
- Screw connection type for main circuit electrical connection
- Black rocker lever handle
- Optional motor drive and voltage release
- Interlockable design
- Complies with IEC/EN 60947 standards
- Corrosion resistant and UV resistant
- Ambient operating temperature range from -25 °C to 70 °C
Professional Installation Requirements
- Professional installation by a qualified electrician is required to ensure compliance with electrical safety standards and proper integration into switchgear assemblies.
Applications
- Use in unearthed supply systems at 690 V
- Industrial electrical distribution and protection
- Main switch, emergency stop, and maintenance/service switch applications
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details to be confirmed with Eaton or authorized distributor.
Available Now
The Eaton Moeller series NZM N2-250 Molded Case Circuit Breaker is available for immediate purchase, ideal for industrial electrical distribution and protection applications.
