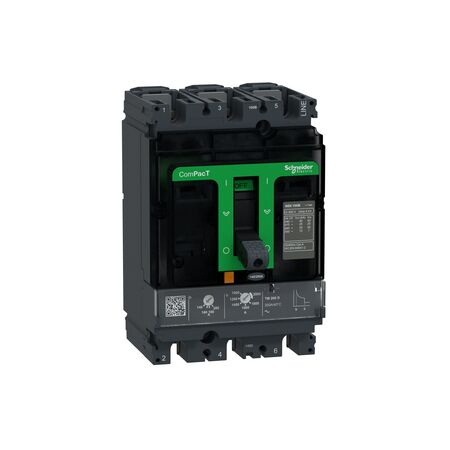

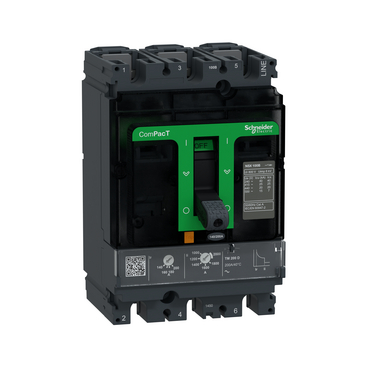

Molded Case Circuit Breaker NSX100B | 25kA Breaking Capacity | 100A Rated Current | Thermal-Magnetic Trip | @Pack of 1 | by Clipsal
The Molded Case Circuit Breaker NSX100B is designed for reliable protection in commercial and industrial electrical distribution systems. With a 25kA breaking capacity and a 100A rated current, this circuit breaker features a thermal-magnetic trip unit for enhanced overload and short-circuit protection. Its compact design allows for easy integration into switchboards, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker NSX100B | 25kA Breaking Capacity | 100A Rated Current | Thermal-Magnetic Trip | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC10B3TM100
Alternatively Known As: ComPacT NSX100B Circuit Breaker, 100A 3 Pole MCCB, SCHC10B3TM100, Schneider NSX100B, 25kA MCCB, 3P3D 100A Breaker
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Poles: 3
- Rated Current: 100A
- Breaking Capacity: 25kA at 415VAC
- Trip Unit: Thermal-Magnetic (TMD)
- Rated Insulation Voltage: 690V
- Rated Impulse Withstand Voltage: 8kV
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.2 kg
Key Features
- ComPacT NSX100B circuit breaker with 3 poles, 3d (three-pole, three direct connections)
- Rated current: 100A
- Breaking capacity: 25kA at 415VAC
- Thermal-magnetic (TMD) trip unit for overload and short-circuit protection
- High reliability and robust design for demanding environments
- Compact size for easy integration into switchboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and facility management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports safe and efficient electrical distribution, reducing risk of electrical fires and equipment damage.
- Long operational life reduces replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX100B 25kA AC 3P3D 100A TMD Circuit Breaker (SCHC10B3TM100) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
