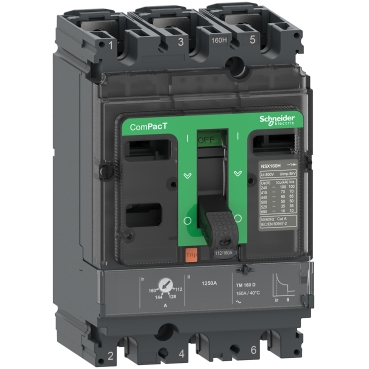

Molded Case Circuit Breaker NSX100N | 50kA Breaking Capacity | 80A Thermal Magnetic Trip | 3 Poles | @Pack of 1 | by Clipsal
The Molded Case Circuit Breaker NSX100N is designed for robust electrical protection with a high breaking capacity of 50kA at 415VAC. Ideal for commercial and industrial electrical distribution systems, this 80A circuit breaker features a thermal magnetic trip unit for reliable overload and short-circuit protection. Its compact design ensures easy integration into switchboards, complying with international safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker NSX100N | 50kA Breaking Capacity | 80A Thermal Magnetic Trip | 3 Poles | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC10N3TM080
Alternatively Known As: ComPacT NSX100N Circuit Breaker, 80A 3 Pole MCCB, Schneider NSX100N 80A, 50kA MCCB, SCHC10N3TM080
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Model: NSX100N
- Rated Current: 80A
- Number of Poles: 3
- Breaking Capacity: 50kA at 415VAC
- Trip Unit: Thermal Magnetic (TMD)
- Rated Voltage: 415VAC
- Mounting: Fixed
- Standards: IEC 60947-2, AS/NZS 60947.2
- Operating Temperature: -25°C to +70°C
- Frequency: 50/60Hz
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.2 kg
Key Features
- ComPacT NSX100N circuit breaker with 3 poles, 3d (three-pole, three direct connection)
- High breaking capacity of 50kA at 415VAC for robust protection
- Thermal Magnetic (TMD) trip unit rated at 80A for reliable overload and short-circuit protection
- Compact design for easy integration into switchboards
- Complies with international and Australian safety standards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and facility management
Standards & Compliance
- Complies with AS/NZS 60947.2 – Low-voltage switchgear and controlgear – Circuit-breakers
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Supports energy efficiency by minimizing downtime and electrical faults
- Long operational life reduces replacement frequency and waste
- RoHS compliant, minimizing hazardous substances
Warranty Information
12 months manufacturer's warranty against defects.
Available Now

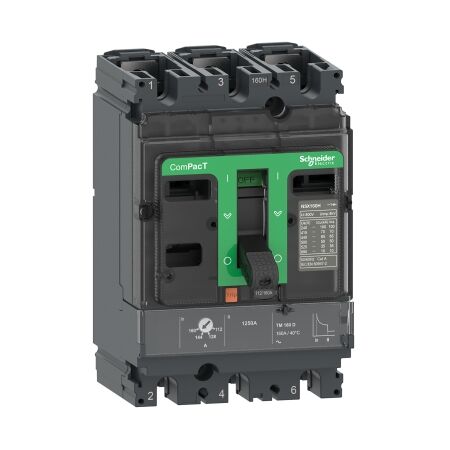

The Clipsal NSX100N 50kA AC 3P3D 80A TMD Circuit Breaker (SCHC10N3TM080) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
