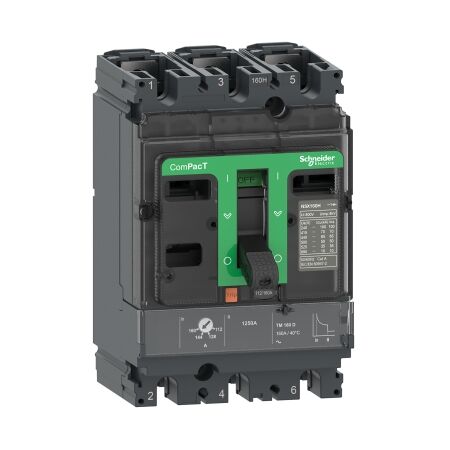

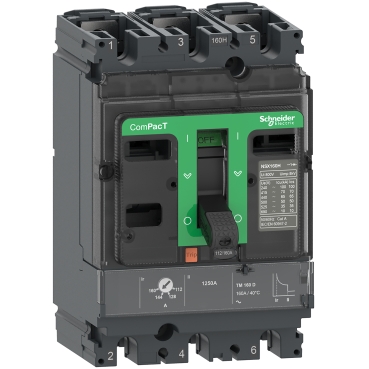

Molded Case Circuit Breaker NSX160B | 25kA Breaking Capacity | 3 Poles | TMD Trip Unit | @Pack of 1 | by Clipsal
The NSX160B Molded Case Circuit Breaker is engineered for commercial and industrial electrical distribution systems, featuring a robust 25kA breaking capacity at 415VAC and a TMD trip unit rated at 160A. Its compact design allows for easy integration into switchboards, ensuring high performance and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker NSX160B | 25kA Breaking Capacity | 3 Poles | TMD Trip Unit | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC16B3TM160
Alternatively Known As: ComPacT NSX160B Circuit Breaker, 160A MCCB, 3 Pole 25kA Breaker, SCHC16B3TM160, Schneider NSX160B
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Rated Current: 160A
- Breaking Capacity: 25kA at 415VAC
- Number of Poles: 3
- Trip Unit: TMD (Thermal Magnetic)
- Rated Operational Voltage: 415VAC
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2
- Dimensions (H x L x W): 161mm x 86mm x 105mm
- Weight: 2.5 kg
Key Features
- ComPacT NSX160B molded case circuit breaker
- 25kA breaking capacity at 415VAC
- 3 poles, 3d (3-pole, 3-phase)
- TMD (Thermal Magnetic) trip unit rated at 160A
- High performance and reliability for demanding environments
- Compact design for easy integration into switchboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and facility management
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports energy efficiency by providing reliable circuit protection and minimizing downtime.
- Designed for long service life, reducing replacement frequency and associated waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX160B 25kA AC 3P3D 160A TMD Circuit Breaker (SCHC16B3TM160) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
