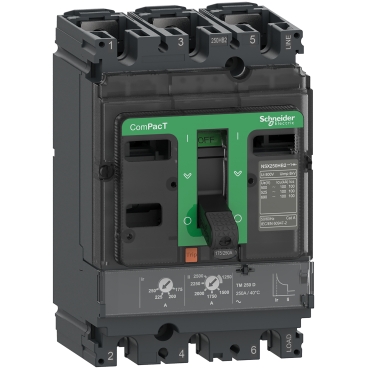

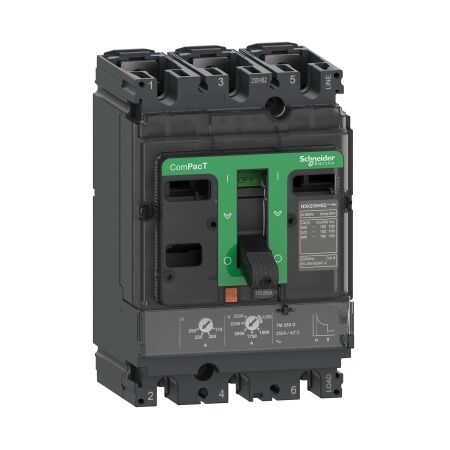

Molded Case Circuit Breaker NSX250B | 125A Rated Current | 25kA Breaking Capacity | 3 Poles | @Pack of 1 | by Clipsal
The NSX250B Molded Case Circuit Breaker is designed for reliable circuit protection in commercial and industrial electrical distribution systems. With a rated current of 125A and a breaking capacity of 25kA at 415VAC, this 3-pole breaker ensures high performance and reliability. Ideal for main and sub-main circuit protection, it features a compact design for easy installation and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker NSX250B | 125A Rated Current | 25kA Breaking Capacity | 3 Poles | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25B3TM125
Alternatively Known As: ComPacT NSX250B Circuit Breaker, 125A MCCB, 3 Pole 25kA Breaker, SCHC25B3TM125, Schneider NSX250B
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Series: ComPacT NSX250B
- Rated Current: 125A
- Breaking Capacity: 25kA at 415VAC
- Number of Poles: 3
- Trip Unit: Thermal Magnetic (TMD)
- Rated Voltage: 415VAC
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 3.5 kg
Key Features
- ComPacT NSX250B molded case circuit breaker
- Rated current: 125A
- Breaking capacity: 25kA at 415VAC
- 3 poles, 3d (3-pole, 3-phase)
- Thermal Magnetic (TMD) trip unit
- High performance and reliability for demanding environments
- Compact design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local regulations and AS/NZS 3000 standards.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panel boards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient energy management by providing reliable circuit protection and reducing downtime.
- Designed for long service life, minimizing replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial electrical distribution systems requiring reliable circuit protection.
