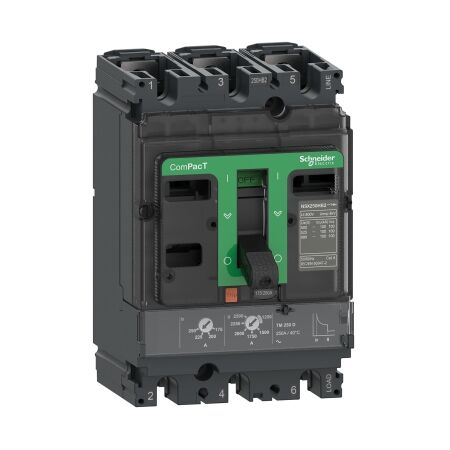

Molded Case Circuit Breaker NSX250B | 25kA Breaking Capacity | 200A Thermal Magnetic | 3 Pole Design | @Pack of 1 | by Clipsal
The NSX250B Molded Case Circuit Breaker is engineered for high performance in commercial and industrial electrical distribution systems. With a robust 25kA breaking capacity and a 200A thermal magnetic trip unit, it ensures reliable circuit protection. Its compact design allows for easy integration into switchboards, making it ideal for main and sub-main circuit protection in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker NSX250B | 25kA Breaking Capacity | 200A Thermal Magnetic | 3 Pole Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25B3TM200
Alternatively Known As: ComPacT NSX250B Circuit Breaker, 200A 3 Pole MCCB, SCHC25B3TM200, Schneider NSX250B, 25kA MCCB
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Rated current: 200A
- Number of poles: 3
- Breaking capacity: 25kA at 415VAC
- Trip unit: Thermal Magnetic (TMD)
- Rated operational voltage: 690V AC max
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliance
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 3.5 kg
Key Features
- ComPacT NSX250B circuit breaker with 3 poles, 3d (3-pole, 3 direct connection)
- Breaking capacity: 25kA at 415VAC
- Thermal Magnetic (TMD) trip unit rated at 200A
- High performance and reliability for demanding environments
- Compact design for easy integration into switchboards
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main circuit protection
- Switchboards and panelboards
- Infrastructure and large building projects
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient energy management by providing reliable circuit protection and reducing downtime.
- Designed for long service life, minimizing replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal NSX250B 25kA AC 3P3D 200A TMD Circuit Breaker (SCHC25B3TM200) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
