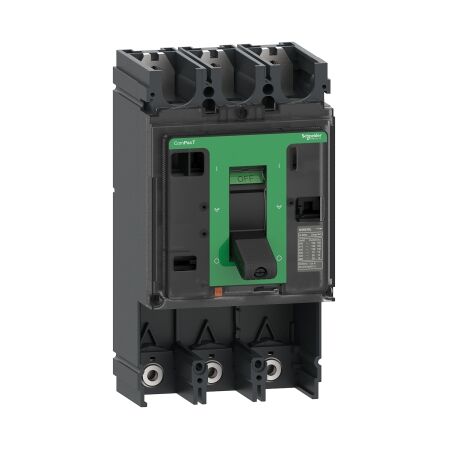

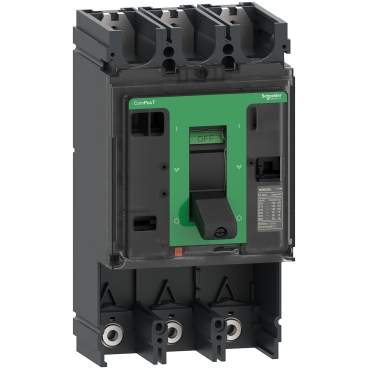

Molded Case Circuit Breaker NSX250N | 50kA Breaking Capacity | 3-Pole 250A | by Clipsal
The Molded Case Circuit Breaker NSX250N is designed for reliable protection in commercial and industrial electrical distribution systems. With a high breaking capacity of 50kA at 415V AC and a robust 3-pole configuration, it ensures safety against overloads and short circuits. Ideal for main and sub-main switchboards, this circuit breaker is compliant with IEC standards and built for long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker NSX250N | 50kA Breaking Capacity | 3-Pole 250A | by Clipsal
Brand: Clipsal
SKU: SCHC25N3
Alternatively Known As: NSX250N Circuit Breaker, 250A MCCB, Schneider NSX250N, 3 Pole 250A Breaker, SCHC25N3
Technical Specifications
- Type: Molded Case Circuit Breaker (MCCB)
- Frame: NSX250N
- Rated Current: 250A
- Number of Poles: 3 (Three-phase)
- Breaking Capacity: 50kA at 415V AC
- Rated Voltage: 690V AC max
- Frequency: 50/60Hz
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Dimensions (H x L x W): 161mm x 86mm x 140mm
- Weight: 3.5 kg
Key Features
- High breaking capacity of 50kA at 415V AC
- 3-pole (3P) configuration for three-phase systems
- Rated current: 250A
- Robust and compact NSX250N frame design
- Suitable for use as a main or sub-main circuit breaker
- Reliable protection against overloads and short circuits
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of electrical circuits in large buildings
- Panelboards and switchgear assemblies
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Supports efficient energy management by providing reliable circuit protection and reducing downtime.
- Designed for long service life, minimizing replacement waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Basic Frame NSX250N 50kA AC 3P 250A (SCHC25N3) is available for immediate purchase. Ideal for commercial and industrial electrical distribution systems.
