Molded Case Circuit Breaker Rotary Handle | IP66 Protection | Lockable Design & Door Interlock | Black by Eaton
Molded case circuit breaker rotary handle with IP66 protection and lockable design—ideal for secure operation in industrial settings. Built for use with NZM2 and N(S)2 circuit breakers, it features a door interlock that ensures safety during operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

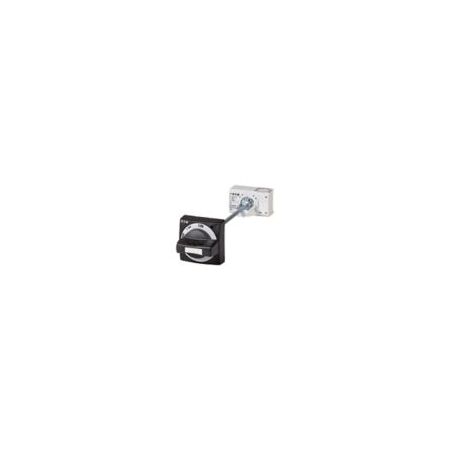

Product Name/Title: Molded Case Circuit Breaker Rotary Handle | IP66 Protection | Lockable Design & Door Interlock | Black by Eaton
Brand: Eaton
SKU: Y7-100684
Alternatively Known As: Molded Case Circuit Breaker Rotary Handle, NZM2 Door Coupling Handle, Lockable Rotary Switch Handle
Technical Specifications
- Color: Black
- Fitted with: Padlock Extension shaft
- Frame: NZM2
- Suitable for: Switch disconnector, Power circuit breaker
- Cover/door type: Door interlock not defeated in locked OFF position; door opens only with active rotation beyond 0 position
- Lock number: Double lockable
- Locking facility: Lockable on the handle on the switch using up to 3 padlocks with door interlock
- Type: Accessory, Door coupling rotary handle
- Special features: Complete including rotary drive and coupling parts; Extension shaft additionally required; Cannot be combined with mechanical interlock; External warning plate/designation label can be clipped on
- Degree of protection / NEMA enclosure type: IP66, 4X, 12
- Compliance: UL/CSA IEC RoHS conform
- Dimensions (H x L x W): 190mm x 75mm x 90mm
- Weight: 0.72 kg
Key Features
- Lockable on the handle on the switch using up to 3 padlocks with door interlock
- Door interlock not defeated in the locked OFF position
- Door opens only with active rotation beyond the 0 position
- Double lockable handle
- Complete including rotary drive and coupling parts
- Extension shaft additionally required
- External warning plate/designation label can be clipped on
- Cannot be combined with mechanical interlock
- IP66, 4X, 12 degree of protection / NEMA enclosure type
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with molded case circuit breakers and panel assembly to ensure compliance with electrical safety standards.
Applications
- Used with NZM2 and N(S)2 molded case circuit breakers
- Suitable for switch disconnectors and power circuit breakers
- Operating the switch through a closed control panel door
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces need for frequent replacements, minimizing waste
- High protection rating (IP66) ensures long service life in harsh environments
Warranty Information
Warranty terms as per Eaton standard product warranty policy.
