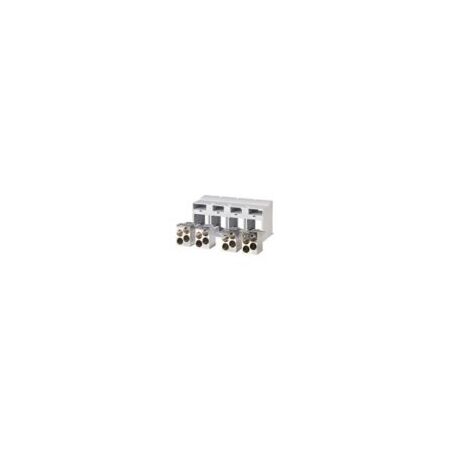

Molded Case Circuit Breaker Tunnel Terminal | 1400A | Four-Pole Configuration | Copper Cable Compatible by Eaton
Molded case circuit breaker tunnel terminal accessory with a 1400A rating and four-pole configuration—ideal for industrial electrical panels. Built for reliable copper cable connections, it meets IEC 60947 standards for safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Molded Case Circuit Breaker Tunnel Terminal | 1400A | Four-Pole Configuration | Copper Cable Compatible by Eaton
Brand: Eaton
SKU: Y7-266837
Alternatively Known As: NZM4 Tunnel Terminal, NZM4-4 Accessory, Molded Case Circuit Breaker Terminal, Eaton NZM4-4-XKA
Technical Specifications
- Amperage Rating: up to 1400 A
- Number of Poles: Four-pole
- Terminal Capacity (stranded cable): 50 mm² - 240 mm² (4x) and (1x), Max. 500 AWG/kcmil
- Compliances: IEC RoHS conform
- Certifications: IEC 60947 EN 60947
- Mechanical and thermal stability meet product standard requirements
- Panel builder responsible for temperature rise, short-circuit rating, electromagnetic compatibility, and electrical connections
- Dimensions (H x L x W): 90mm x 88mm x 212mm
- Weight: 3.4 kg
Key Features
- Tunnel terminal accessory for NZM4 series molded case circuit breakers
- Four-pole configuration with 1 switch side
- Suitable for copper cable connections
- Terminal capacity supports stranded cables from 50 mm² to 240 mm²
- Complies with IEC 60947 and EN 60947 standards
- Meets corrosion resistance and thermal stability requirements
Professional Installation Requirements
- Installation must be performed by a qualified electrician familiar with molded case circuit breakers and switchgear assembly standards.
Applications
- Industrial electrical panels requiring molded case circuit breakers
- Electrical distribution systems needing four-pole circuit protection
- Switchgear assemblies with copper cable connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed to support efficient electrical distribution reducing energy losses
- Complies with IEC RoHS standards limiting hazardous substances
Warranty Information
Warranty terms as per Eaton's standard product warranty policy.
Available Now
The Eaton Moeller NZM4-4-XKA tunnel terminal accessory is available for immediate purchase, ideal for industrial and commercial electrical panel applications.
