Momentary Push Button Switch 22.5mm | 40mm Red Cap | IP65/IP66/IP69K Rated by NHP
Momentary push button switch with 22.5mm size and 40mm red cap—ideal for industrial control panels and emergency stop applications. Built for durability, with IP65/IP66/IP69K protection and long mechanical life.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

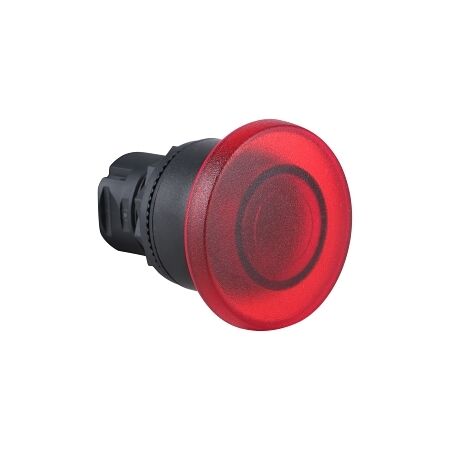

Product Name/Title: Sprecher and Schuh D7 PushButton 22.5 mm Plastic Momentary Mush Hd 40 mm Red
Brand: NHP
SKU: D7PLMM44
Alternatively Known As: Momentary Push Button Switch, Emergency Stop Button
Technical Specifications
- Electrical life at un in service cycles: 500,000 cycles
- Mechanical life service cycles: 10,000,000 cycles
- Operating temperature: -25 to 70 °C
- Max vibration acceleration: 10 m/s²
- Max vibration frequency operational: 2000 Hz
- Max shock acceleration: 100 g
- Suitable for emergency stop: Yes
- Suitable for illumination: Yes
- Unlocking method: Pull-release
- Dimensions (H x L x W): 40mm x 22.5mm x 40mm
- Weight: 0.2 kg
Key Features
- 22.5mm pushbutton with a 40mm diameter cap.
- IP65/IP66/IP69K rated for protection against dust and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control panels, machinery operation
- Commercial: Emergency stop applications
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long mechanical life reduces waste and replacement frequency.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 PushButton 22.5 mm Plastic Momentary Mush Hd 40 mm Red is available now for immediate purchase. Ideal for industrial and commercial applications.
