Monarch IP 1607Hx607Wx602D IP66 Alum RAL7035

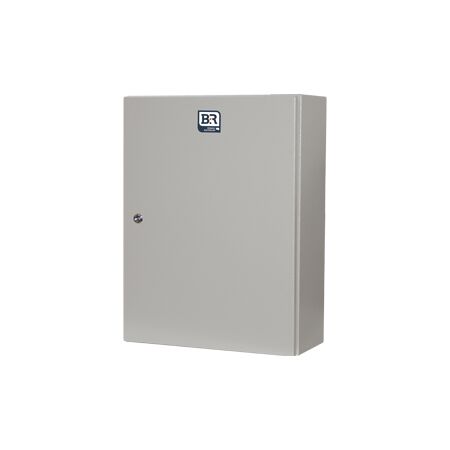

Monarch IP Aluminium Enclosure | 1607Hx607Wx602D | IP66 Rated | RAL7035 Finish by B&R Enclosures

BRAND: B&R Enclosures

SKU: IP61216/A

$7,553.30 List price: $9,493.80

+ −

30 Days Return Delivery Options

Monarch IP aluminium enclosure with IP66 protection and 1607Hx607Wx602D dimensions—ideal for small motor control and lighting applications. Built for durability with reversible doors and multiple mounting options, ensuring flexibility and compliance with AS/NZS 61439 standards.

Description
Attachments

Product Name/Title: Monarch IP 1607Hx607Wx602D IP66 Alum RAL7035

Brand: B&R Enclosures

SKU: IP61216/A

Alternatively Known As: Monarch IP Aluminium Enclosure, IP66 Enclosure, Aluminium Switchboard

Technical Specifications

Body thickness: 2.5mm
Polyurethane gasket (formed in place)
Powdercoated light grey RAL7035 or Ripple Orange – X15 finish
C rail mountings
Gland plate (fitted internally or externally)
7mm square turnbuckle lock (below 1600mm high)
Lockable L handles (above 1600mm high)
3-point locking (600mm high and above)
Removable back (400mm deep and above)
Dimensions (H x L x W): 600mm x 607mm x 1607mm
Weight: 0.602 kg

Key Features

IP66 protection rating
Vertical body and door rails
Earth strap kit comes as standard
Reversible doors (right hand hinging as standard)
Multiple mounting options providing flexibility
Wide range of accessories for added versatility
Region D wind rated to AS1170.2-2002

Professional Installation Requirements

Professional installation is recommended to ensure compliance with safety standards.

Applications

Small motor control applications
Lighting
CT metering
Small switchboards

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.

Environmental Benefits

Durable aluminium construction reduces the need for frequent replacements, minimizing waste.

Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Monarch IP – Aluminium is available now for immediate purchase, ideal for various electrical applications.

Specification Sheet (, 439 Kb) [Download]
