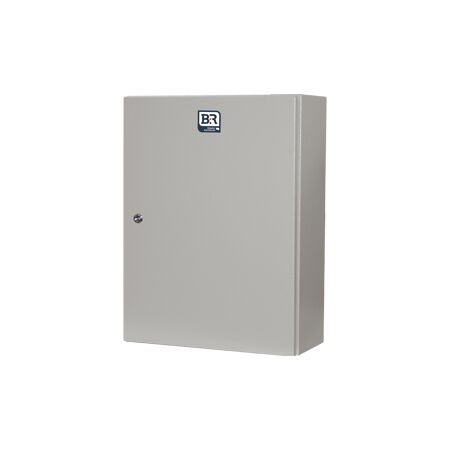

Monarch IP Aluminium Enclosure | 607Hx807Wx502D | IP66 Rated | RAL7035 Finish by B&R Enclosures
Monarch IP aluminium enclosure with IP66 protection and 607Hx807Wx502D dimensions—ideal for small motor control and lighting applications. Built for durability and flexibility, with reversible doors and multiple mounting options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Monarch IP 607Hx807Wx502D IP66 Alum RAL7035
Brand: B&R Enclosures
SKU: IP21295/A
Alternatively Known As: Monarch IP Aluminium Enclosure, IP66 Enclosure, Aluminium Switchboard
Technical Specifications
- Body thickness: 2.5mm
- Polyurethane gasket (formed in place)
- Powdercoated light grey RAL7035 or Ripple Orange – X15 finish
- C rail mountings
- Gland plate (fitted internally or externally)
- 7mm square turnbuckle lock (below 1600mm high)
- Lockable L handles (above 1600mm high)
- 3-point locking (600mm high and above)
- Removable back (400mm deep and above)
- Dimensions (H x L x W): 500mm x 807mm x 607mm
- Weight: 0.5 kg
Key Features
- IP66 protection rating
- Vertical body and door rails
- Earth strap kit comes as standard
- Reversible doors (right hand hinging as standard)
- Multiple mounting options providing flexibility
- Wide range of accessories for added versatility
- Region D wind rated to AS1170.2-2002
Professional Installation Requirements
- Professional installation is recommended for optimal safety and compliance.
Applications
- Small motor control applications
- Lighting
- CT metering
- Small switchboards
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable aluminium construction reduces the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Monarch IP – Aluminium is available now for immediate purchase. Ideal for various electrical applications requiring robust and flexible enclosures.
