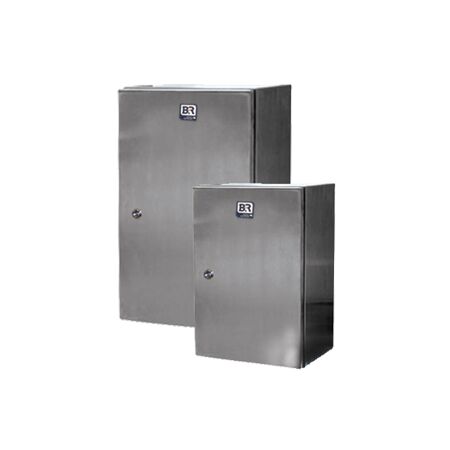

Monarch IP Enclosure 1200Hx800Wx400D | IP66 316SS N4 Finish | C Rail Mountings by B&R Enclosures

SKU: IP45294/S
$7,509.20 List price: $9,438.30
Free pick up (over 25 kg)
For delivery quote message
Monarch IP enclosure with IP66 protection and 316 stainless steel construction—ideal for small motor control and lighting applications. Built for durability, with C rail mountings and concealed removable hinging.

Product Name/Title: Monarch IP 1200Hx800Wx400D IP66 316SS N4 Finish

Brand: B&R Enclosures

SKU: IP45294/S

Alternatively Known As: Monarch IP Enclosure, 316 Stainless Steel Enclosure, IP66 Enclosure

Technical Specifications
  • Material: 1.2/1.5mm thick 316 stainless steel
  • Gland plate: 1.5mm 316 stainless steel (brass available as an option)
  • Wind rated to AS1170.2-2002: Structural design actions – Wind actions
  • Dimensions (H x L x W): 800mm x 400mm x 1200mm
  • Weight: 400 kg
Key Features
  • IP66 protection rating
  • C rail mountings for equipment
  • Gland plate fitted internally or externally on units 400mm deep or deeper
  • Vertical body and door rails
  • 3 point locking on models of 600mm high and above
  • Lockable L handle on enclosures 1600mm high and above
  • Stainless steel hinges and hinge pins for easy door opening
  • Concealed removable hinging
  • Polyurethane gasket (foamed in place)
  • ASSDA approved N4 surface finish
Professional Installation Requirements
  • Professional installation is recommended to ensure compliance with safety standards.
Applications
  • Small motor control applications
  • Lighting
  • CT metering
  • Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Monarch IP – 316SS Enclosure is available now for immediate purchase, ideal for industrial applications requiring robust protection.
