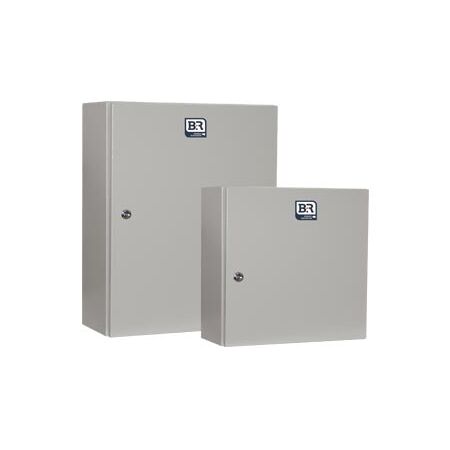

Monarch IP Enclosure 1200Hx800Wx400D | IP66 Rated | Zinc Coated Steel | Pebble Grey by B&R Enclosures
Monarch IP enclosure with IP66 rating and zinc coated steel—ideal for small motor control and lighting applications. Built for durability, with C rail mountings and pebble grey powdercoated finish.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Monarch IP 1200Hx800Wx400D IP66 Steel RAL7032
Brand: B&R Enclosures
SKU: IP45294
Alternatively Known As: Zinc Coated Steel Enclosure, IP66 Enclosure, Monarch IP Enclosure
Technical Specifications
- 1.6mm thick zinc coated steel
- 1.6mm steel gland plate (brass also available as an option)
- Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions
- Dimensions (H x L x W): 800mm x 400mm x 1200mm
- Weight: 400 kg
Key Features
- IP66 protection rating
- C rail mountings for equipment
- Gland plate on all but 175 and 270mm deep enclosures
- Vertical body and door rails
- 3 point locking on models of 600mm high and above
- Lockable L handle on enclosures 1600mm high and above
- Stainless steel hinges and hinge pins for easy door opening
- Concealed removable hinging
- Polyurethane gasket (formed in place)
- Pebble Grey (RAL7032) powdercoated paint finish or Ripple Orange
Professional Installation Requirements
- Professional installation is recommended to ensure compliance with safety standards.
Applications
- Small motor control applications
- Lighting
- CT metering
- Small switchboards
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Monarch IP – Zinc Coated Steel Enclosure is available now for immediate purchase, ideal for industrial applications.
