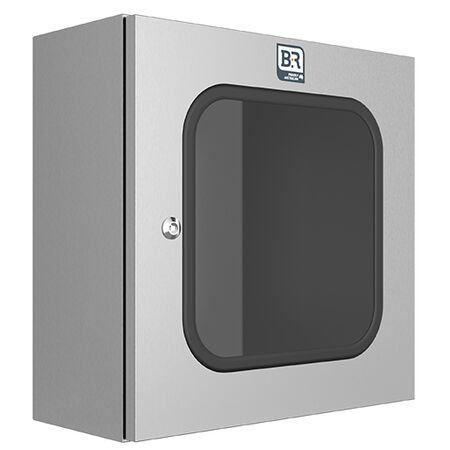

Monarch IP Enclosure 600Hx600Wx400D | IP66 Rating | Glass Viewing Window | Stainless Steel by B&R Enclosures

SKU: IP21214/S/WG
$5,515.50 List price: $6,932.40
+
Monarch IP enclosure with IP66 protection and glass viewing window—ideal for industrial and commercial applications. Built for durability with stainless steel construction, ensuring robust performance in small motor control and lighting setups.

Product Name/Title: Monarch IP 600Hx600Wx400D IP66 SS N4 VW Glass

Brand: B&R Enclosures

SKU: IP21214/S/WG

Alternatively Known As: Monarch IP Enclosure, Stainless Steel Viewing Window Enclosure, IP66 Enclosure

Technical Specifications
  • Material: 1.2/1.5mm thick 316 stainless steel
  • Gland plate: 1.5mm 316 stainless steel (brass option available)
  • Polyurethane gasket (foamed in place)
  • Region D wind rated to AS1170.2-2002
  • Dimensions (H x L x W): 600mm x 600mm x 600mm
  • Weight: 15 kg
Key Features
  • IP66 protection rating
  • Glass Viewing Window
  • 3 point locking on models of 600mm high and above
  • Stainless steel hinges and hinge pins for easy door opening
  • Concealed removable hinging
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Small motor control applications
  • Commercial: Lighting and CT metering
  • General: Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (SS) is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust and flexible enclosures.
