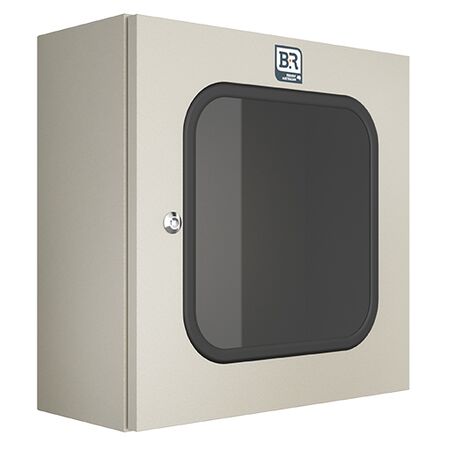

Monarch IP Steel Enclosure | 1600Hx800Wx500D | IP66 Rated | Glass Viewing Window by B&R Enclosures

SKU: IP61295/WG
$5,962.00 List price: $7,493.60
Free pick up (over 25 kg)
For delivery quote message
Monarch IP steel enclosure with IP66 protection and glass viewing window—ideal for small motor control and lighting applications. Built for industrial use, with C rail mountings and stainless steel hinges for easy access.

Product Name/Title: Monarch IP 1600Hx800Wx500D IP66 St 7032 VW Glass

Brand: B&R Enclosures

SKU: IP61295/WG

Alternatively Known As: Monarch IP Steel Enclosure, Industrial Steel Enclosure, IP66 Enclosure

Technical Specifications
  • 1.6mm thick zinc coated steel
  • 1.6mm steel gland plate (brass available as an option)
  • Polyurethane gasket (formed in place)
  • Pebble Grey (RAL7032) or Ripple Orange (X15) powdercoated finish
  • Region D wind rated to AS1170.2-2002
  • Dimensions (H x L x W): 800mm x 500mm x 1600mm
  • Weight: 50 kg
Key Features
  • IP66 protection rating
  • C rail mountings for equipment
  • Glass Viewing Window
  • 3 point locking on models of 600mm high and above
  • Stainless steel hinges and hinge pins for easy door opening
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Small motor control applications
  • Lighting
  • CT metering
  • Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (ZS) is available now for immediate purchase. Ideal for industrial applications requiring robust and flexible enclosures.

Specification Sheet (, 440 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
