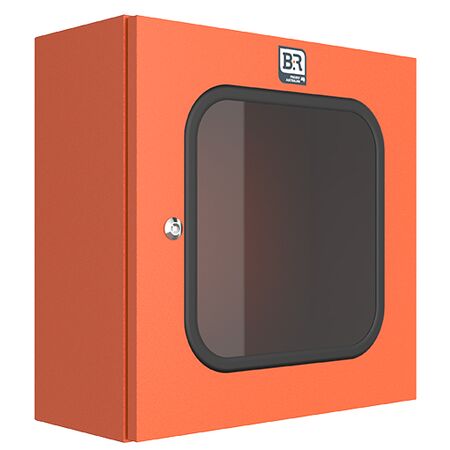

Monarch IP Viewing Window | IP66 Rated | Aluminium | Glass by B&R Enclosures

SKU: IP29215/A/WG
$5,607.30 List price: $7,047.80
+
Monarch IP viewing window with IP66 protection and durable aluminium body—ideal for small motor control and lighting applications. Built for versatility, with glass viewing window and multiple mounting options.

Product Name/Title: Monarch IP 807Hx607Wx502D IP66 Al 7035 VW Glass

Brand: B&R Enclosures

SKU: IP29215/A/WG

Alternatively Known As: Monarch IP Viewing Window, IP66 Viewing Window, Aluminium Viewing Window

Technical Specifications
  • Body: Aluminium
  • Body thickness: 2.5mm
  • Polyurethane gasket: formed in place
  • Powdercoated light grey RAL7035 or Ripple Orange – X15
  • 5.4mm thick glass viewing window
  • C rail mountings
  • Gland plate: fitted internally or externally
  • 7mm square turnbuckle lock (below 1600mm high)
  • Lockable L handles (above 1600mm high)
  • 3-point locking (600mm high and above)
  • Removable back (400mm deep and above)
  • Dimensions (H x L x W): 600mm x 607mm x 807mm
  • Weight: 5.0 kg
Key Features
  • IP66 protection rating
  • Vertical body and door rails
  • Earth strap kit comes as standard
  • Reversible doors (right hand hinging as standard)
  • Multiple mounting options
  • Wide range of accessories for added versatility
  • Glass Viewing Window
  • Region D wind rated to AS1170.2-2002
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Small motor control applications
  • Lighting
  • CT metering
  • Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (AL) is available now for immediate purchase. Ideal for various small motor control and lighting applications.

Specification Sheet (, 440 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
