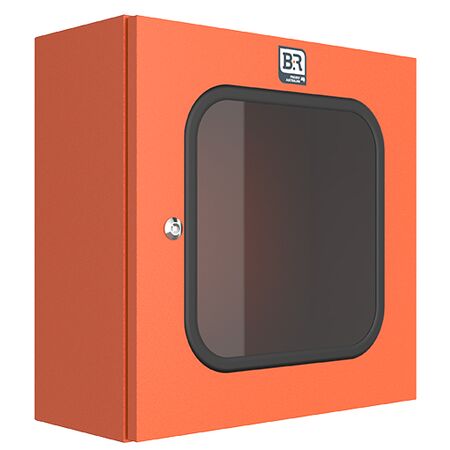

Monarch IP Viewing Window | IP66 Rated | Aluminium | Glass by B&R Enclosures
Monarch IP viewing window with IP66 protection and durable aluminium construction—ideal for small motor control and lighting applications. Built for versatility, with glass viewing window and multiple mounting options.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Monarch IP 2007Hx407Wx602D IP66 Al 7035 VW Glass
Brand: B&R Enclosures
SKU: IP77136/A/WG
Alternatively Known As: Monarch IP Viewing Window, IP66 Viewing Window, Aluminium Viewing Window
Technical Specifications
- Body: Aluminium
- Body thickness: 2.5mm
- Polyurethane gasket: formed in place
- Powdercoated light grey RAL7035 or Ripple Orange – X15
- 5.4mm thick glass viewing window
- C rail mountings
- Gland plate: fitted internally or externally
- 7mm square turnbuckle lock (below 1600mm high)
- Lockable L handles (above 1600mm high)
- 3-point locking (600mm high and above)
- Removable back (400mm deep and above)
- Dimensions (H x L x W): 600mm x 407mm x 2007mm
- Weight: 5.0 kg
Key Features
- IP66 protection rating
- Vertical body and door rails
- Earth strap kit comes as standard
- Reversible doors
- Multiple mounting options
- Wide range of accessories
- Glass Viewing Window
- Region D wind rated to AS1170.2-2002
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Small motor control applications
- Lighting
- CT metering
- Small switchboards
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Monarch IP – Viewing Window (AL) is available now for immediate purchase. Ideal for various small motor control and lighting applications.
