Monarch IP 2007Hx807Wx402D IP66 Al 7035 VW Glass

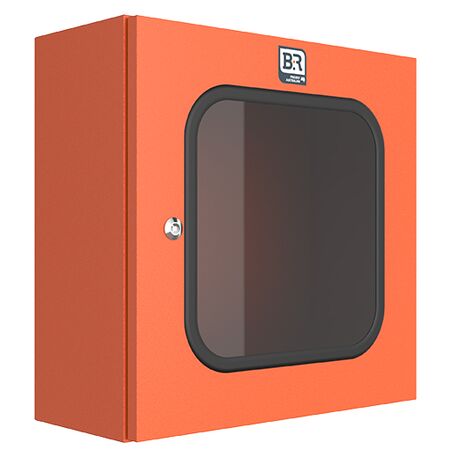

Monarch IP Viewing Window | IP66 Rated | Aluminium | Glass by B&R Enclosures

BRAND: B&R Enclosures

SKU: IP77294/A/WG

$10,021.90 List price: $12,596.50

+ −

30 Days Return Delivery Options

Monarch IP viewing window with IP66 protection and durable aluminium body—ideal for small motor control and lighting applications. Built for robust performance, with glass viewing window and multiple mounting options.

Description
Attachments

Product Name/Title: Monarch IP 2007Hx807Wx402D IP66 Al 7035 VW Glass

Brand: B&R Enclosures

SKU: IP77294/A/WG

Alternatively Known As: Monarch IP Viewing Window, IP66 Viewing Window, Aluminium Viewing Window

Technical Specifications

Body: Aluminium
Body thickness: 2.5mm
Polyurethane gasket: formed in place
Powdercoated light grey RAL7035 or Ripple Orange finish
5.4mm thick glass viewing window
C rail mountings
Gland plate: fitted internally or externally
Locking: 3-point locking for heights 600mm and above
Dimensions (H x L x W): 1600mm x 807mm x 2007mm
Weight: 10 kg

Key Features

IP66 protection rating
Vertical body and door rails
Earth strap kit comes as standard
Reversible doors
Multiple mounting options
Wide range of accessories
Glass Viewing Window
Region D wind rated

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Small motor control applications
Lighting
CT metering
Small switchboards

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (AL) is available now for immediate purchase, ideal for various electrical applications.

Specification Sheet (, 440 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
