Trade Discount 25%

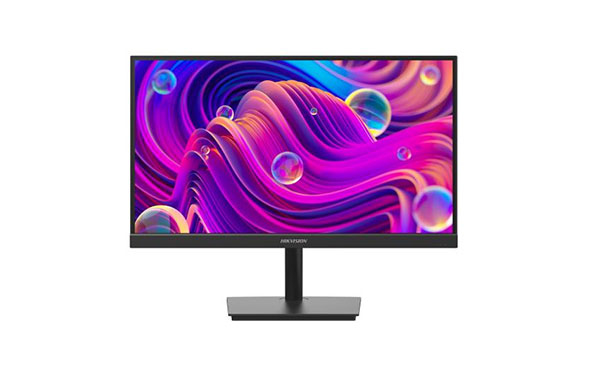

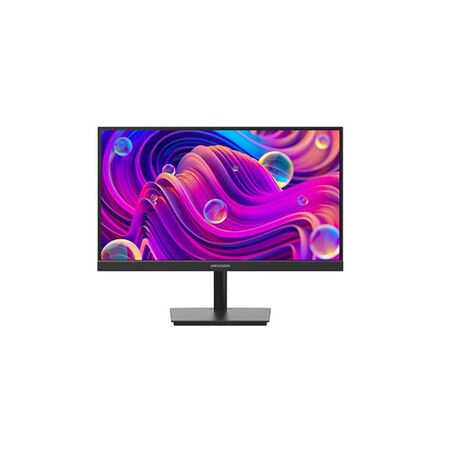

Monitor 22 Inch with Speakers Hikvision
Hikvision monitor features a 22 Inch screen and built-in speakers. Ideal for CCTV viewing and control room installs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Hikvision 22-Inch CCTV Monitor, Hikvision Surveillance Monitor, DS-D5022FC Monitor
Technical Specifications
- Display Size: 21.5 inch, marketed as 22 inch
- Panel Type: LED backlit LCD
- Resolution: 1920 × 1080 at 60 Hz
- Brightness: 250 cd/m²
- Contrast Ratio: 1000:1
- Response Time: 5 ms
- Viewing Angle: 170° horizontal, 160° vertical
- Video Inputs: HDMI × 1, VGA × 1, BNC × 1
- Audio Interfaces: Audio input and output, 3.5 mm mini-jack
- Speakers: 2 × 2 W stereo loudspeakers
- USB Interface: USB 2.0 × 1
- Power Supply: DC 12 V, 3.0 A
- Power Consumption: ≤30 W; standby ≤0.5 W
- VESA Mounting: 100 × 100 mm
- Operating Temperature: 0 °C to 40 °C
- Reliability: Suitable for continuous CCTV monitoring applications
- Dimensions (H x L x W): 377mm x 511mm x 170mm
- Weight: 3.2 kg
Key Features
- Full HD 1920 × 1080 display for clear CCTV and NVR viewing
- Built-in 2 × 2 W stereo speakers for compatible video and audio feeds
- HDMI, VGA and BNC connectivity for modern and legacy surveillance equipment
- LED backlight with 250 cd/m² brightness
- VESA-compatible mounting design
- Designed for CCTV systems and control-room monitoring
Applications
- CCTV control rooms
- Security monitoring stations
- NVR and DVR display systems
- Commercial and industrial surveillance installations
- Security desk and reception monitoring
Standards & Compliance
- AS/NZS 3820 for essential safety requirements for in-scope electrical equipment
- AS/NZS 5815.1 for computer-monitor energy-performance measurement methods
- AS/NZS 5815.2 for computer-monitor minimum energy-performance requirements and energy labelling
Environmental Benefits
- LED backlighting avoids the mercury-containing fluorescent backlights used in older CCFL displays
- Standby power consumption of up to 0.5 W helps reduce energy use when the monitor is not actively displaying footage
- Designed for continuous surveillance use, which can extend service life and reduce replacement waste
Warranty Information
Hikvision Australia warranty coverage is subject to the applicable product warranty terms, valid warranty documentation and proof of purchase. The published Hikvision Australia five-year programme lists selected camera, NVR, storage and thermal product series and does not list monitors; confirm the applicable warranty period with the authorised distributor.
Available Now
Available through Hikvision Australia and authorised Australian distribution partners; confirm current stock and regional model availability before ordering.
