Monitoring Relay 1 Phase OI | 2-20A AC | Self-Powered | NPN PNP Output by NHP
Monitoring relay with 2-20A AC range and self-powered operation—ideal for industrial and commercial electrical systems. Built for overcurrent protection, with NPN PNP output and DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

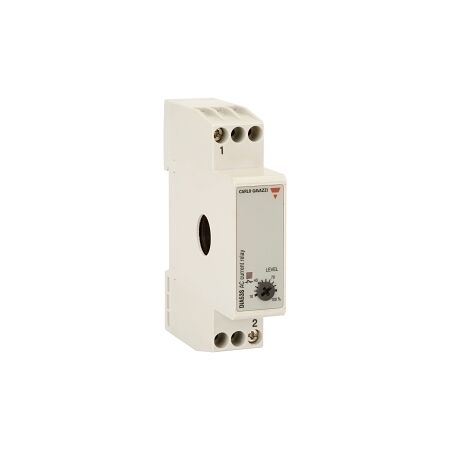

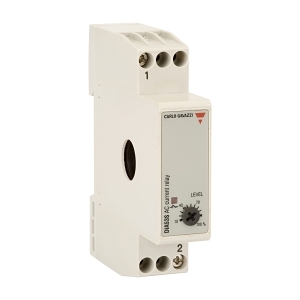

Product Name/Title: Carlo Gavazzi Monitoring Relay 1 Phase OI 2 to 20A AC 2 Wire Self Power NPN PNP Normally Open Output
Brand: NHP
SKU: IMAX20
Alternatively Known As: Current Monitoring Relay, Overcurrent Relay, AC Monitoring Relay
Technical Specifications
- Current Measuring Range: 2-20 A
- Rated Frequency: 45400 Hz
- Number of Contacts: 1 Normally Open
- Rated Operation Current (IE): 0.1 A
- Rated Operation Current at DC 12/24 V: 5 A
- Rated Operation Current at DC 13/24 V: 2.5 A
- Voltage Type for Actuating: Self powered
- Material Contact: Other
- Suitable for DIN Rail Mounting: Yes
- Degree of Protection: IP20
- Storage Temperature: -30 to 80 °C
- Dimensions (H x L x W): 81mm x 67.2mm x 17.5mm
- Weight: 0.08 kg
Key Features
- Self-powered operation eliminates the need for external power supply.
- Single-phase overcurrent monitoring with a range of 2-20A.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Monitoring electrical systems and equipment
- Commercial: Ensuring safety in electrical installations
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enhances energy efficiency by monitoring and preventing overcurrent situations.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay 1 Phase OI 2 to 20A AC is available now for immediate purchase. Ideal for industrial and commercial applications.
