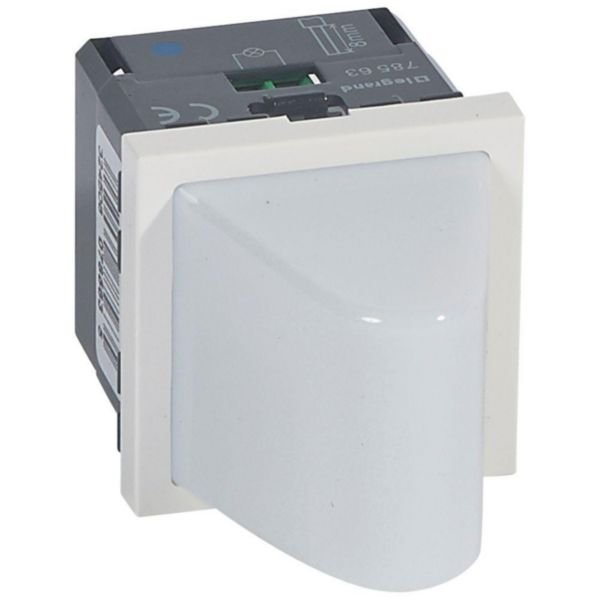

Mosaic™ Bulkhead Light | 12-24 V AC/DC | 0.6 W Power Consumption | IP41 Rated | @EA of 1 | by Legrand
The Mosaic™ Bulkhead Light is designed for versatile illuminated signage and indicator lighting, operating at 12-24 V AC/DC with a low power consumption of just 0.6 W. Ideal for both residential and commercial applications, this blue LED light features a durable halogen-free thermoplastic construction and is IP41 rated for protection against solid objects and dripping water, ensuring long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 12-24 V AC/DC
- Power consumption: 0.6 W
- Modules: 2
- Light source: Blue LED
- Material: Halogen free thermoplastic
- Protection rating: IP41
- Impact resistance: IK04
- Operating temperature: -5 to 35 °C
- Storage temperature: -10 to 70 °C
- Connection type: Screwed terminal
- Cable section: 2.5 mm²
- Dimensions (H x L x W): 45mm x 76.4mm x 45mm
- Weight: 0.1 kg
Key Features
- Very low consumption LED with an estimated service life of 100,000 hours
- Flush-mounted installation
- Halogen free thermoplastic material
- Glossy blue finish
- IP41 rated for protection against solid objects and dripping water
- IK04 impact resistance
- Screwed terminal connection for secure wiring
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Illuminated signage functions
- Bulkhead lighting for corridors and stairwells
- Indicator lighting in residential and commercial buildings
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption LED reduces energy use
- Long LED lifespan minimizes waste and replacement frequency
- Halogen free materials for safer environmental impact
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Mosaic™ Bulkhead Blue Light 12-24 V is available for immediate purchase, ideal for illuminated signage and indicator lighting in residential and commercial applications.
