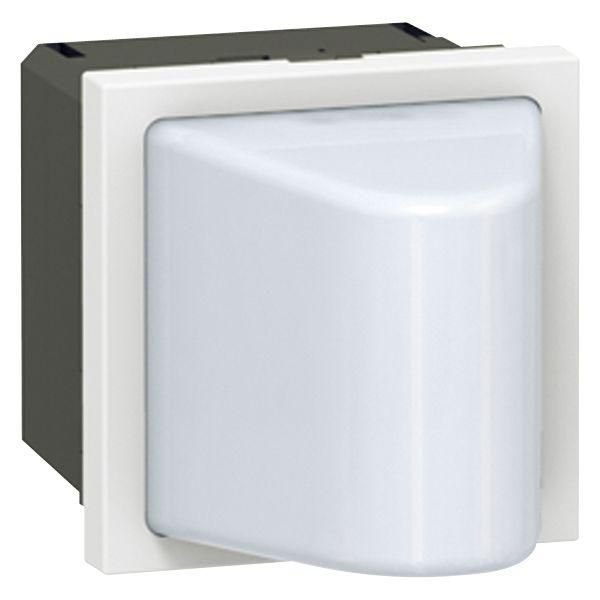

Mosaic Bulkhead Light 0.6W 2 Module White Legrand

BRAND: Legrand
SKU: 78561
$112.20 List price: $139.80
1 EA ($112.20 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The Mosaic™ Bulkhead Light is designed for efficient indoor lighting, operating at 12-24 V AC DC with a low power consumption of just 0.6 W.
Technical Specifications
  • Power Consumption: 0.6 W
  • Voltage: 12-24 V AC/DC
  • Number of Modules: 2
  • Lamp Holder: Other
  • Light Source: LED (white)
  • Mounting Method: Flush-mounted
  • Material: Thermoplastic (halogen free)
  • Surface Finish: Glossy white
  • Degree of Protection: IP41
  • Impact Strength: IK04
  • Operating Temperature: -5 to 35 °C
  • Storage Temperature: -10 to 70 °C
  • Connection Type: Screwed terminal
  • Cable Section: 2.5 mm²
  • Dimensions (H x L x W): 45mm x 76.4mm x 45mm
  • Weight: 0.1 kg
Key Features
  • Very low consumption LED with an estimated service life of 100,000 hours
  • Flush-mounted installation
  • Halogen free thermoplastic material with glossy white finish
  • IP41 rated for protection against solid objects and dripping water
  • IK04 impact resistance
  • Screwed terminal connection for secure wiring
  • Exchangeable symbol option available
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper connection.
Applications
  • Indoor lighting for corridors, stairwells, and emergency exit pathways
  • Illuminated signage and indicator lighting in residential and commercial buildings
  • Flush-mounted lighting solutions for wiring device ranges
Standards & Compliance
  • AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Low power consumption reduces energy usage and environmental impact
  • Long LED lifespan minimizes waste and replacement frequency
  • Halogen free materials contribute to safer disposal and reduced toxic emissions
Warranty Information

Legrand offers a standard 2-year warranty covering manufacturing defects and performance issues.

Available Now

The Legrand Mosaic™ Bulkhead Light 12-24 V 0.6 W 2 Modules White is available for immediate purchase, ideal for indoor lighting and illuminated signage applications.

F00606FR-00 (F00606FR-00.pdf, 353 Kb) [Download]

F00606EN-00 (F00606EN-00.pdf, 400 Kb) [Download]

ex223001_1196 (ex223001_1196.pdf, 221 Kb) [Download]
