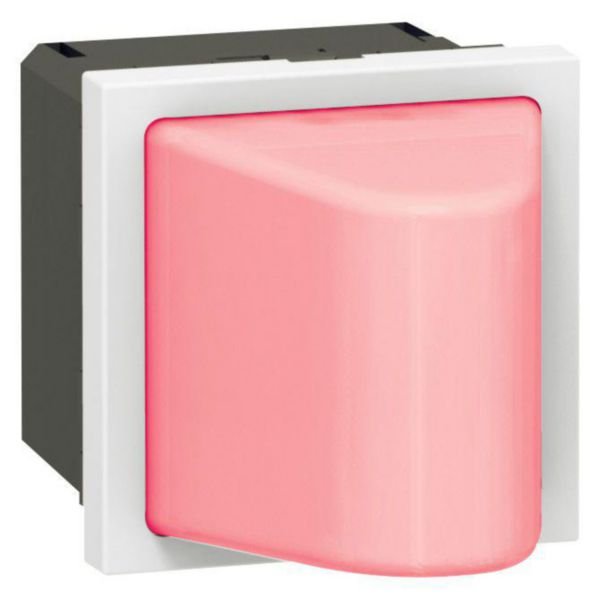

Mosaic™ Bulkhead Light | 12-24 V AC/DC | 0.6 W Power | Red LED | @EA of 1 | by Legrand
Mosaic™ Bulkhead Light with 12-24 V AC/DC voltage and 0.6 W power consumption is perfect for illuminated signage and indicator lighting. Designed for both residential and commercial use, this light features a glossy red finish and is flush-mounted for a neat appearance. With a long LED lifespan and low power consumption, it’s an eco-friendly choice for corridors and emergency exits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Voltage: 12-24 V AC/DC
- Power Consumption: 0.6 W
- Modules: 2
- Lamp Holder: Other
- Light Source: LED (Red)
- Mounting Method: Flush-mounted
- Material: Halogen-free thermoplastic
- Surface Finish: Glossy
- Degree of Protection: IP41
- Impact Strength: IK04
- Operating Temperature: -5 to 35 °C
- Storage Temperature: -10 to 70 °C
- Connection Type: Screwed terminal
- Cable Section: 2.5 mm²
- Dimensions (H x L x W): 45mm x 76.4mm x 45mm
- Weight: 0.1 kg
Key Features
- Very low consumption LEDs with an estimated service life of 100,000 hours
- Flush-mounted installation for a neat finish
- Halogen-free thermoplastic material with glossy red finish
- Suitable for IP41 degree of protection
- Impact resistance rating IK04
- Screwed terminal connection for secure wiring
- Exchangeable symbol option available
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper mounting.
Applications
- Illuminated signage in residential and commercial buildings
- Indicator lighting for corridors and emergency exits
- Bulkhead lighting for indoor and sheltered outdoor areas
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption LED technology reduces energy use
- Long LED lifespan minimizes waste and replacement frequency
- Halogen-free materials reduce environmental impact
Warranty Information
Standard Legrand warranty applies, typically 2 years against manufacturing defects.
Available Now
The Legrand Mosaic™ Bulkhead Light 12-24V Red 2 Modules 0.6W is available for immediate purchase, ideal for illuminated signage and indicator lighting in residential and commercial applications.
