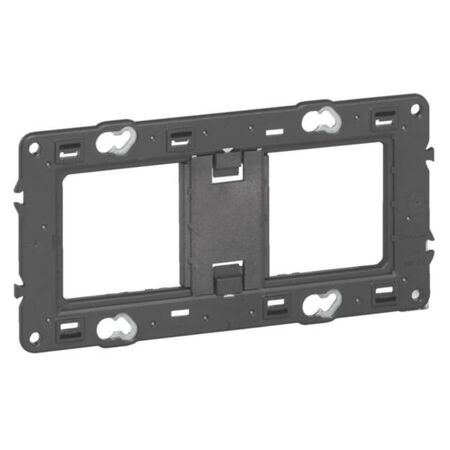

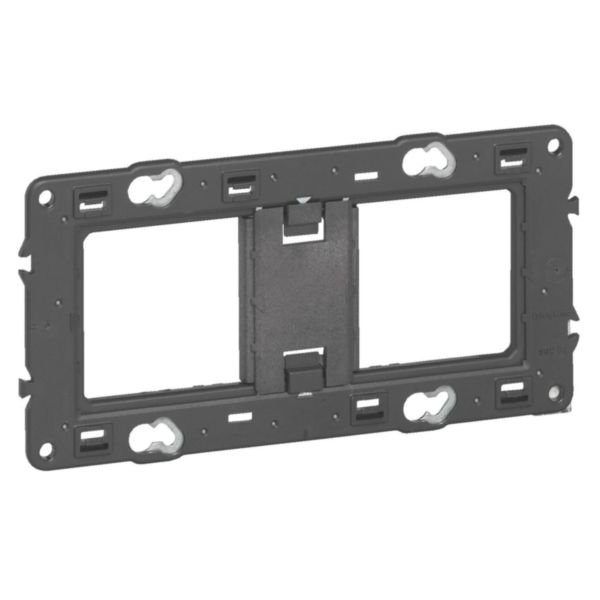

Mosaic™ Support with Site Protection | Flush-Mounted | Galvanic Zinc Plating | Horizontal/Vertical Mounting | @EA of 1 | by Legrand
Mosaic™ Support with site protection is designed for 4, 5, or 2 x 2 modular installations, making it ideal for both residential and commercial electrical setups. Built from galvanic zinc plated metal, it offers corrosion resistance and is compatible with flush-mounted installations. This versatile support can be mounted horizontally or vertically, ensuring flexibility in your electrical projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Metal with galvanic/electrolytic zinc plating
- Depth: 15.7 mm
- Height: 77 mm
- Width: 145 mm
- Number of modules horizontal: 5
- Number of modules vertical: 1
- Mounting method: Screw mounting (screws not included)
- Flush-mounted installation: Yes
- Mounting direction: Horizontal and vertical
- Suitable for mounting on DIN-rail 35 mm: No
- Suitable for subfloor installation duct box: No
- Suitable for wall duct: No
- With built-in installation box: No
- With nail: No
- Mounting method of the module inserts: Front side
- Dimensions (H x L x W): 77mm x 16mm x 145mm
- Weight: 0.2 kg
Key Features
- Supports with site protection for 4, 5 or 2 x 2 modules
- Flush-mounted installation compatible
- Mounting with screws (screws not included)
- Galvanic/electrolytic zinc plated metal surface for corrosion resistance
- Suitable for front side mounting of module inserts
- Can be mounted horizontally or vertically
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
- Residential and commercial electrical installations
- Supports for modular electrical devices in flush-mounted setups
- Suitable for horizontal and vertical mounting of electrical modules
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable metal construction reduces need for frequent replacements
- Galvanic zinc plating enhances corrosion resistance, extending product life
Warranty Information
Legrand standard warranty applies, typically 2 years against manufacturing defects.
Available Now
Legrand Mosaic™ Support with site protection is available for immediate purchase, ideal for residential and commercial electrical wiring device installations.
