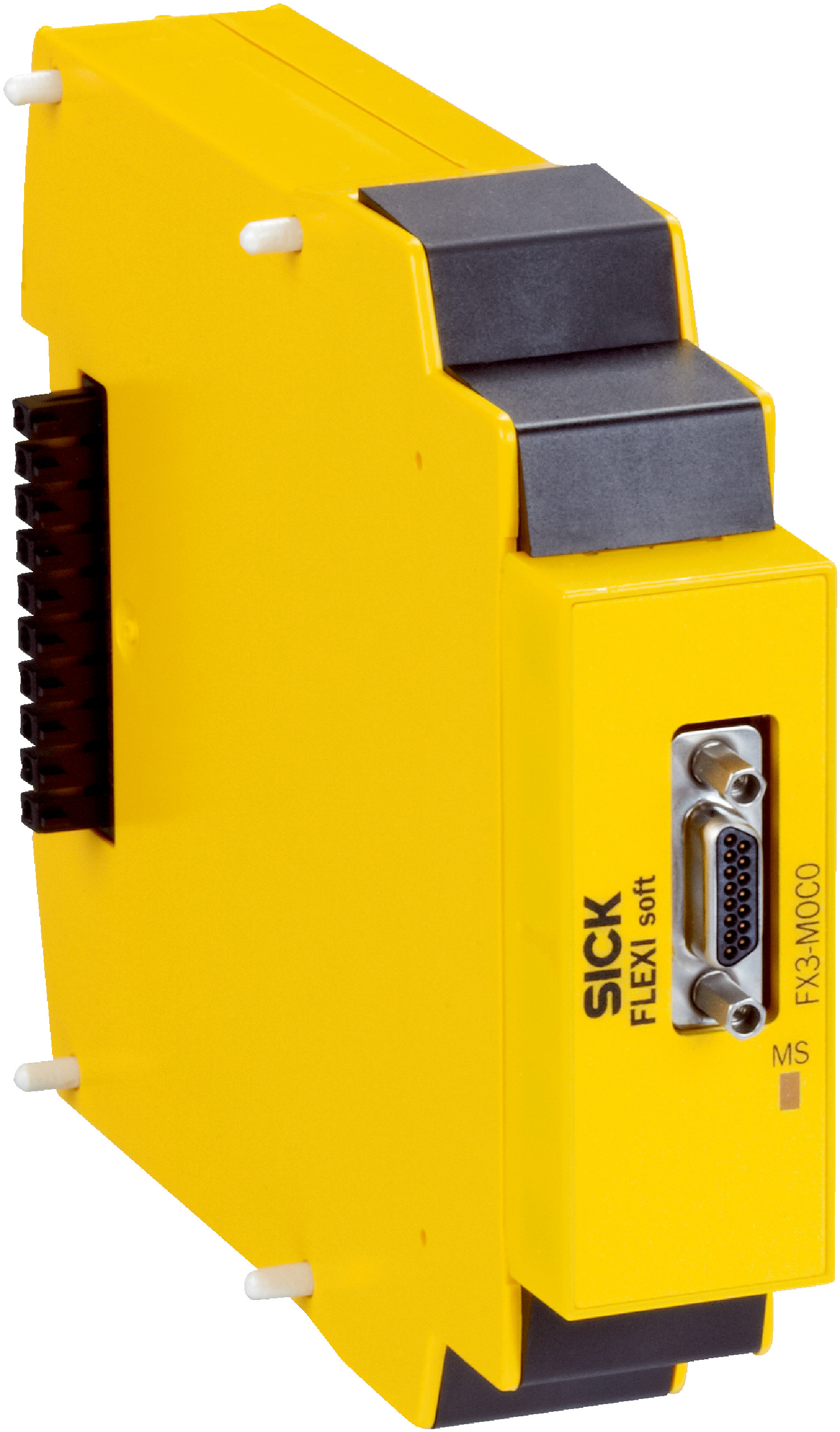

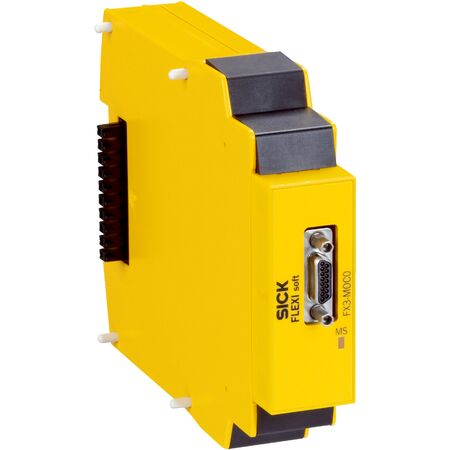

Motion Control Module FX3-MOC000000 | SIL 3 Safety Level | IP20 Enclosure | by SICK
The Motion Control Module FX3-MOC000000 is designed for industrial automation systems requiring precise motion control. With support for multiple encoder types and a high safety integrity level of SIL 3, it ensures reliable operation in safety-critical applications. Ideal for machinery with encoder feedback, this module features low power consumption and is configurable via Flexi Soft Designer software.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supports axes with two encoders of various types including sine-cosine, TTL, HTL 12 V/24 V, RS-422, SSI
- Safety integrity level SIL 3 (IEC 61508), Category 4 (EN ISO 13849), Performance level PL e
- PFHD (mean probability of dangerous failure per hour) 5.0 * 10^-9 for two encoder axes
- Drive safety functions: SS1, SS2, SOS, SSM, SLS, SDI, SBC
- Encoder interfaces: A/B incremental encoder TTL, HTL 12 V/24 V, RS-422, Sin/cos encoder, SSI encoder (master/listener), HIPERFACE®
- Connection type: Male Micro D-Sub 15-pin connector
- Data interface: Internal bus (FLEXBUS+)
- Protection class: III (EN 61140)
- Voltage supply: Via FLEXBUS+
- Internal power consumption: ≤ 2.5 W
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -25 °C to +70 °C
- Enclosure rating: IP20 (EN 60529)
- Weight: 120 g
- Dimensions (H x L x W): 96.5mm x 126mm x 22.5mm
- Weight: 0.12 kg
Key Features
- Motion Control module configurable via Flexi Soft Designer software
- Supports multiple encoder types including sine-cosine, TTL, HTL 12 V/24 V, RS-422, SSI
- Drive safety functions including Safe stop 1 (SS1), Safe stop 2 (SS2), Safe operating stop (SOS), Safe speed monitoring (SSM), Safely-limited speed (SLS), Safe direction (SDI), Safe brake control (SBC)
- High safety integrity levels: SIL 3 (IEC 61508), Category 4 (EN ISO 13849), Performance level PL e
- Internal bus connection via FLEXBUS+ with male Micro D-Sub 15-pin connector
- Low internal power consumption ≤ 2.5 W
- Protection class III (EN 61140)
- Operating temperature range from -25 °C to +55 °C
- IP20 enclosure rating
Professional Installation Requirements
- Installation and configuration should be performed by qualified personnel familiar with safety control systems and SICK Flexi Soft Designer software.
Applications
- Industrial automation systems requiring motion control
- Safety-related motion control for machinery with encoder feedback
- Integration in safety control systems for axes with multiple encoder types
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Designed for long operational life with mission time of 20 years
- Supports safety functions that help prevent machinery accidents and reduce downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FX3-MOC000000 Motion Control Module is available for immediate purchase, ideal for industrial automation and safety-critical motion control applications.
