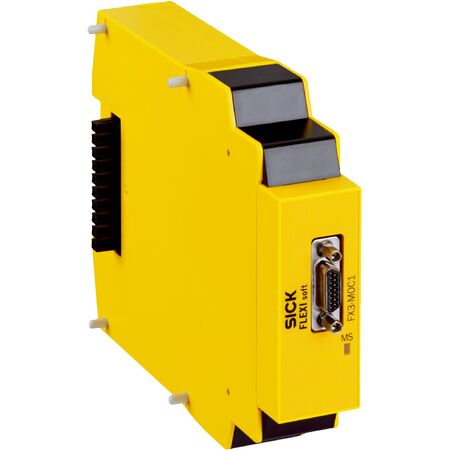

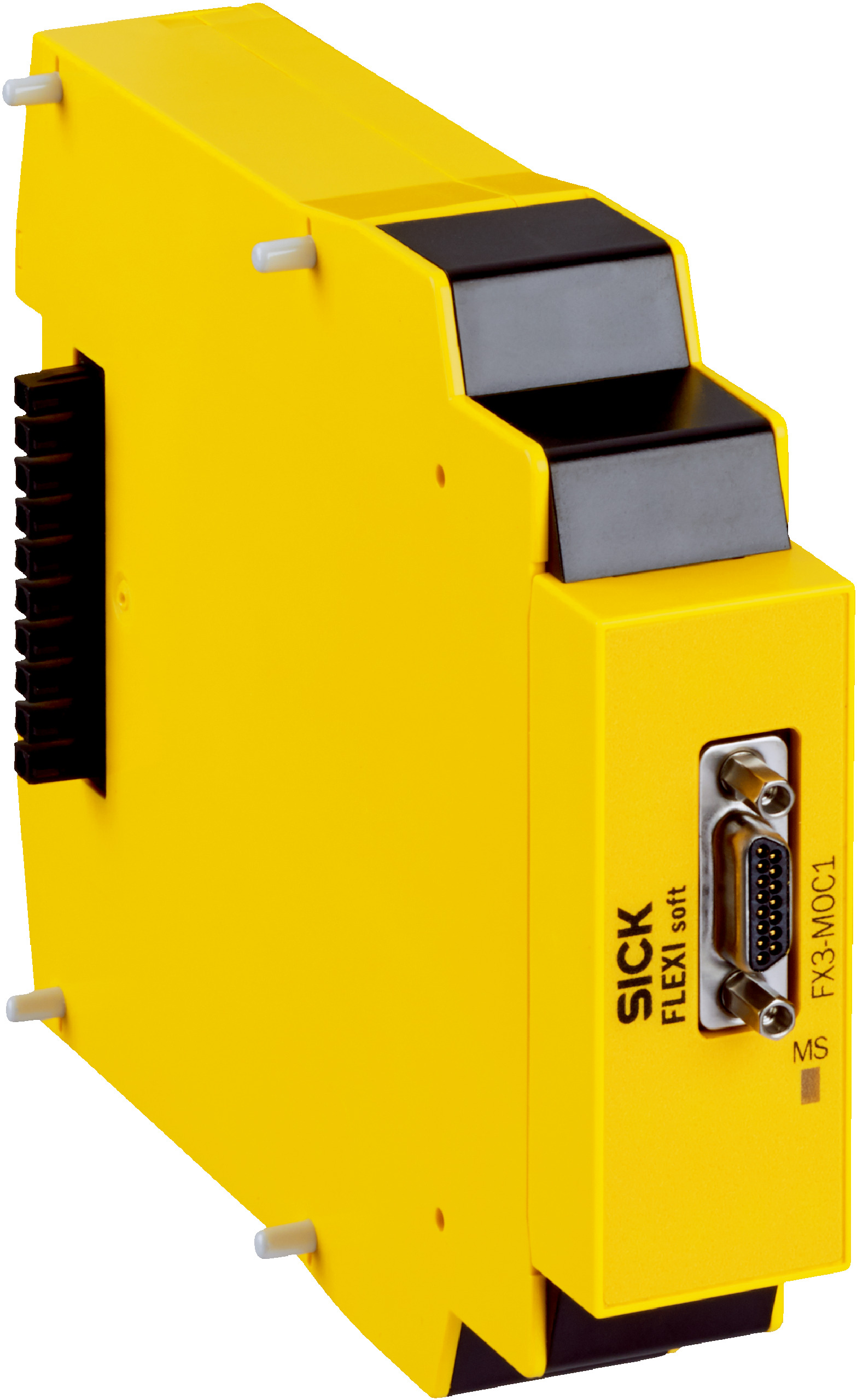

Motion Control Module FX3-MOC100000 | Configurable via Flexi Soft Designer | Multiple Encoder Interfaces | by SICK
The FX3-MOC100000 Motion Control Module is designed for industrial automation, offering configurable safety functions and support for various encoder types. Ideal for safety-related motion monitoring in machinery, this module integrates seamlessly into safety control systems, ensuring reliable performance and compliance with industry standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 97mm x 126mm x 23mm
- Weight: 0.12 kg
Key Features
- Motion Control module configurable via Flexi Soft Designer and Safe EFI-pro System: Safety Designer software
- Supports axes with two encoders of various types including sine-cosine, TTL, HTL 24 V, MTL 12 V, RS-422, SSI
- Drive safety functions including Safe stop 1 (SS1), Safe stop 2 (SS2), Safe operating stop (SOS), Safe speed monitoring (SSM), Safely-limited speed (SLS), Safe direction (SDI), Safe brake control (SBC), Safe cam (SCA), Safely-limited position (SLP)
- Multiple encoder interfaces: A/B incremental encoder (TTL, HTL 12 V or 24 V, RS-422), Sin/cos encoder, SSI encoder (master/listener), HIPERFACE®
- Internal bus communication via FLEXBUS+
- Protection class III (EN 61140) with low internal power consumption (≤ 2.5 W)
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with safety control systems and motion control modules.
Applications
- Industrial automation for motion control
- Safety-related motion monitoring in machinery
- Integration in safety control systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption reduces energy usage
- Designed for long mission time of 20 years, supporting sustainability through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK FX3-MOC100000 Motion Control Module is available for immediate purchase, ideal for industrial automation and safety control system integration.
