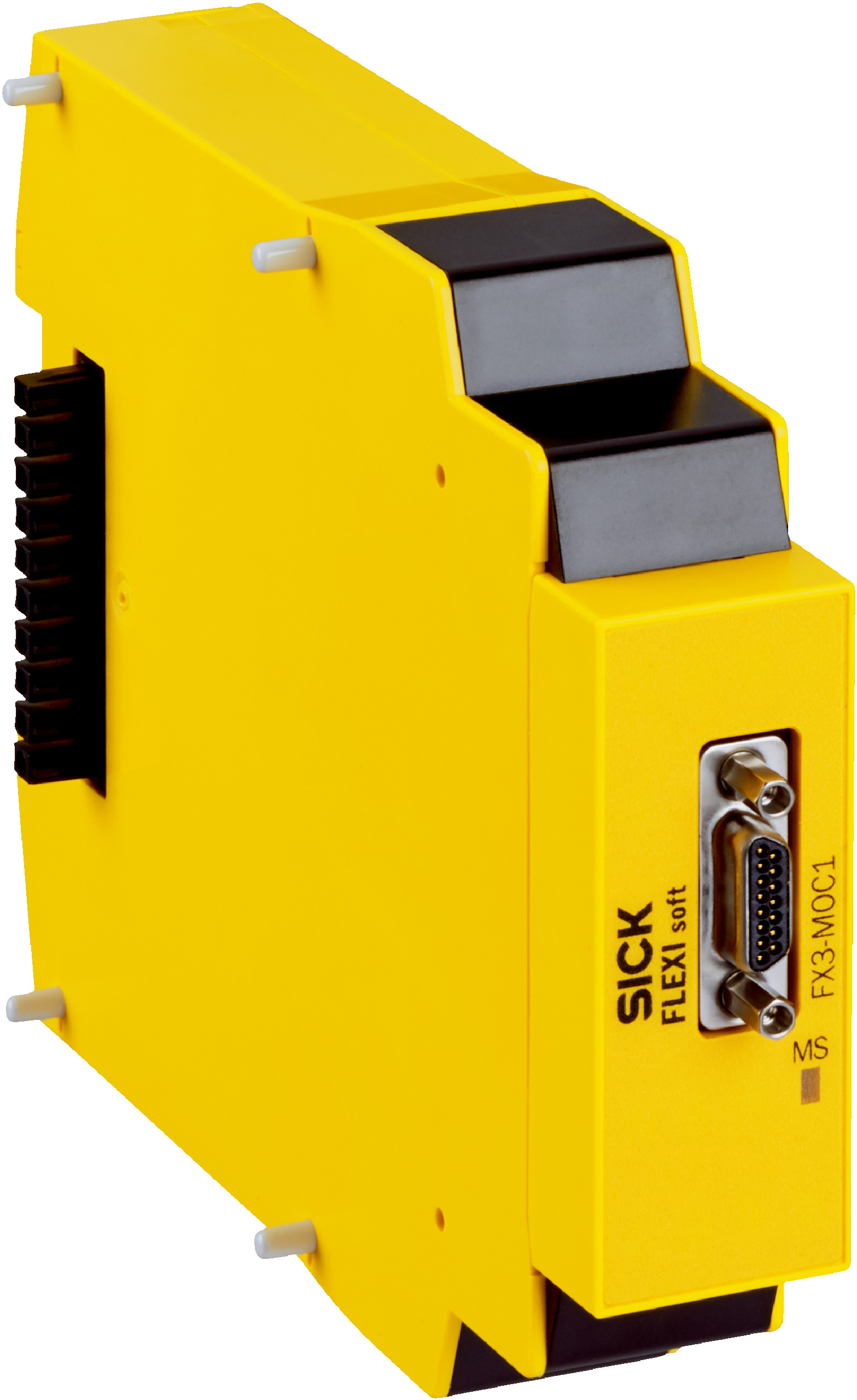

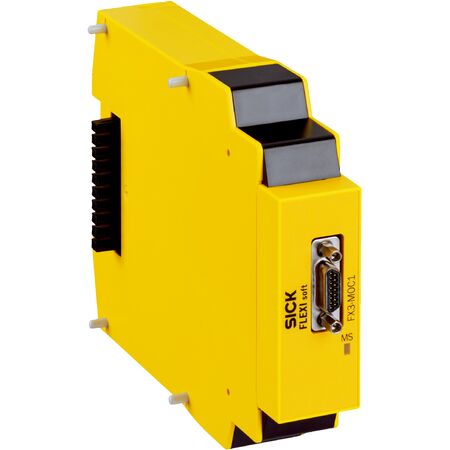

Motion Control Module FX3-MOC100010 | SIL 3 Safety Level | Configurable via Flexi Soft | Protective Coating | by SICK
The Motion Control Module FX3-MOC100010 is designed for industrial automation systems requiring precise motion control and safety. With SIL 3 safety integrity levels and support for multiple encoder types, it ensures reliable operation in safety-critical applications. Its protective coating enhances durability in harsh environments, making it ideal for demanding industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Configuration via Flexi Soft Designer and Safe EFI-pro System software
- Supports encoder interfaces: A/B incremental (TTL, HTL 12 V/24 V), RS-422, Sin/cos, SSI, HIPERFACE®
- Safety integrity levels: SIL 3 (IEC 61508), Category 4 (EN ISO 13849), Performance level PL e
- Drive safety functions: SS1, SS2, SOS, SSM, SLS, SDI, SBC, SCA, SLP
- Internal power consumption ≤ 2.5 W
- Protection class III (EN 61140)
- Enclosure rating IP20 (EN 60529)
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -25 °C to +70 °C
- Humidity: ≤ 95%, non-condensing
- Resistance to sulfur dioxide and mixed gases per IEC standards
- Dimensions (H x L x W): 97mm x 126mm x 23mm
- Weight: 0.12 kg
Key Features
- Motion control module configurable via Flexi Soft Designer and Safe EFI-pro System software
- Protective coating for resistance to challenging ambient conditions including sulfur exposure
- Supports multiple encoder types including sine-cosine, TTL, HTL 12 V/24 V, RS-422, SSI, and HIPERFACE®
- Drive safety functions including Safe stop 1 & 2, Safe operating stop, Safe speed monitoring, Safely-limited speed, Safe direction, Safe brake control, Safe cam, and Safely-limited position
- Internal bus communication via FLEXBUS+
- Low internal power consumption (≤ 2.5 W)
- Protection class III (EN 61140)
- Enclosure rating IP20 (EN 60529)
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation and configuration should be performed by qualified professionals familiar with industrial safety standards and SICK system software.
Applications
- Industrial automation systems requiring motion control
- Safety-critical machinery with encoder feedback
- Systems needing SIL 3 and PL e safety integrity levels
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Protective coating extends product lifespan in harsh environments, reducing waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK FX3-MOC100010 Motion Control Module is available for immediate purchase, ideal for industrial automation and safety-critical motion control applications.
