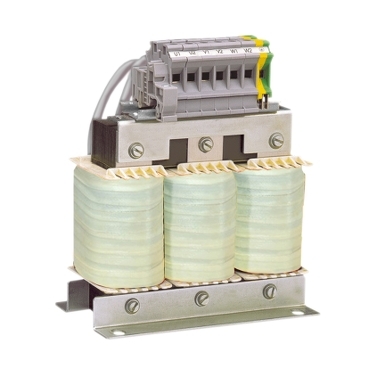

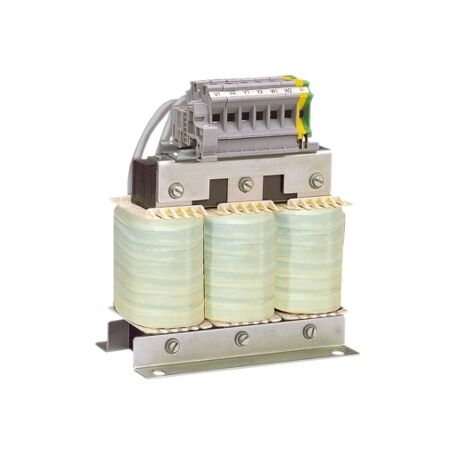

Motor Choke 314A (X3) | IP00 Protection | Reduces Harmonic Distortion | Improves Motor Efficiency | @Pack of 1 | by Clipsal
The Motor Choke 314A (X3) is designed for industrial motor protection and variable speed drive (VSD) applications. With a rated current of 314A and IP00 open frame protection, it effectively reduces harmonic distortion and improves motor efficiency. Ideal for HVAC systems, pumps, and manufacturing automation, this choke ensures balanced load and enhanced performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Choke 314A (X3) | IP00 Protection | Reduces Harmonic Distortion | Improves Motor Efficiency | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHVW3A5105
Alternatively Known As: Motor Line Reactor, Motor Choke, VSD Choke, 314A Choke, Clipsal SCHVW3A5105
Technical Specifications
- Rated Current: 314A
- Phases: 3 (X3)
- Protection: IP00 (open frame)
- Inductance: Optimized for VSD applications
- Frequency: 50/60Hz
- Mounting: Panel mount
- Operating Temperature: -25°C to +40°C
- Conductor Material: Copper windings
- Dimensions (H x L x W): 350mm x 200mm x 250mm
- Weight: 12 kg
Key Features
- Reduces harmonic distortion and limits inrush current
- Improves power factor and motor efficiency
- Three-phase (X3) design for balanced load
- Open frame (IP00) for integration into control panels
- Rated for 314A continuous current
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and manufacturer guidelines.
Applications
- Industrial motor protection
- Variable speed drive (VSD) installations
- HVAC systems
- Pumps and compressors
- Manufacturing automation
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Reduces energy losses by improving motor efficiency
- Minimizes electrical noise and harmonics, supporting cleaner power systems
- Extends motor and equipment lifespan, reducing waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Motor Choke 314A (X3) IP00 SCHVW3A5105 is available for immediate purchase. Ideal for industrial motor protection and VSD applications.
