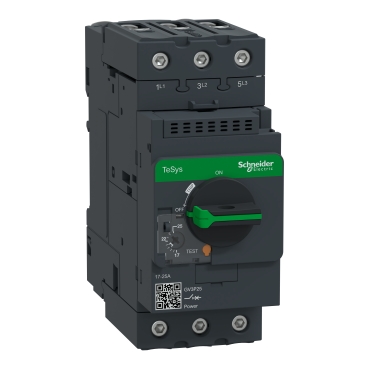

Motor Circuit Breaker 17-25A | Thermal-Magnetic Protection | 3-Pole Design | DIN Rail Mounting | @Pack of 1 | by Clipsal
The Motor Circuit Breaker 17-25A is designed for reliable motor protection, featuring thermal-magnetic trip units and an adjustable current range of 17-25A. Ideal for industrial and commercial applications, this 3-pole breaker ensures short-circuit and overload protection, making it perfect for machinery control panels and pump circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Circuit Breaker 17-25A | Thermal-Magnetic Protection | 3-Pole Design | DIN Rail Mounting | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHGV3P25
Alternatively Known As: Motor Circuit Breaker 17-25A, Thermal Magnetic Motor Breaker, GV3P25, Motor Protection Circuit Breaker, Clipsal Motor Breaker
Technical Specifications
- Type: Motor Circuit Breaker
- Current Range: 17-25A (adjustable)
- Poles: 3
- Trip Unit: Thermal-magnetic
- Rated Insulation Voltage: 690V AC
- Breaking Capacity: 100kA at 400V AC
- Mounting: DIN rail
- Operating Temperature: -20°C to +60°C
- Standards: IEC/EN 60947-2, IEC/EN 60947-4-1
- Dimensions (H x L x W): 90mm x 75mm x 55mm
- Weight: 0.6 kg
Key Features
- Thermal-magnetic protection for motors
- Adjustable current range: 17-25A
- 3-pole design for three-phase applications
- Manual ON/OFF control with trip indication
- Compact DIN rail mounting
- Short-circuit and overload protection
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules.
Applications
- Industrial motor protection
- Commercial electrical panels
- Machinery control panels
- Pump and fan motor circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents electrical faults, reducing risk of equipment damage and waste
- Enhances energy efficiency by protecting motors from overload
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal SCHGV3P25 Motor Circuit Breaker 17-25A is available for immediate purchase. Ideal for industrial and commercial motor protection applications.
