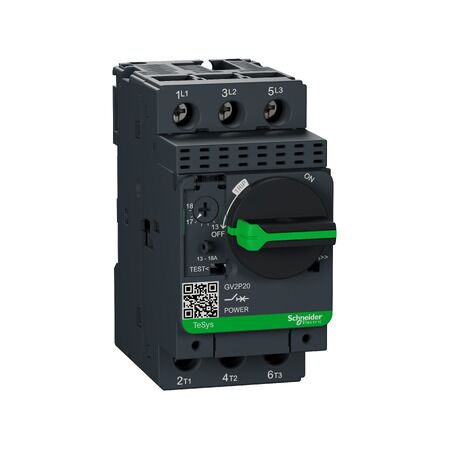

TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, rotary handle

Motor Circuit Breaker 3P 13-18A | Thermal Magnetic | Rotary Handle by Clipsal

BRAND: Clipsal

SKU: GV2P20

$318.00 List price: $477.10

+ −

30 Days Return Delivery Options

Motor circuit breaker with 13-18A thermal-magnetic protection and rotary handle—ideal for industrial motor protection. Built for durability with high breaking capacity and screw clamp terminals.

Description
Attachments

Product Name/Title: TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 13 to 18A, thermal magnetic, screw clamp terminals, rotary handle

Brand: Clipsal

SKU: GV2P20

Alternatively Known As: TeSys GV2 Circuit Breaker, Motor Protection Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated current: 18A
Rated operational voltage: 690V AC 50/60Hz
Trip unit technology: thermal-magnetic
Poles description: 3P
Network type: AC
Utilisation category: category A conforming to IEC 60947-2
Breaking capacity: 100kA Icu at 400V AC
Thermal protection adjustment range: 13-18A
Magnetic tripping current: 341A
Rated insulation voltage: 690V AC
Rated impulse withstand voltage: 6kV
Fire resistance: 960°C conforming to IEC 60695-2-11
Dimensions (H x L x W): 89mm x 97mm x 45mm
Weight: 0.334 kg

Key Features

Thermal-magnetic protection with a setting range of 13-18A.
High breaking capacity of 50kA at 400V.
Connection via screw clamp terminals.
Start-stop control using a rotary knob with a durability of 100,000 cycles.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Motor protection for 3-phase applications
Commercial: Suitable for various motor control systems

Standards & Compliance

Complies with IEC 60947-2 for safety and performance standards.

Environmental Benefits

Green Premium compliant (RoHS/REACh).

Warranty Information

18 months warranty against manufacturing defects.

Available Now

The TeSys GV2 Motor Circuit Breaker is available now for immediate purchase. Ideal for industrial motor protection applications.

GV2P20 (GV2P20, 353 Kb) [Download]
