Trade Discount 33%

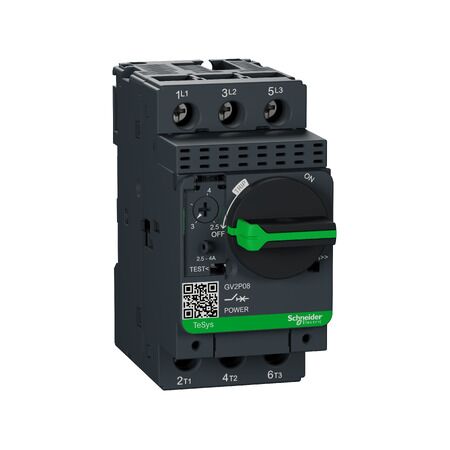

Motor Circuit Breaker 3P 2.5-4A | Thermal Magnetic | Rotary Handle by Clipsal
Motor circuit breaker with 2.5-4A thermal magnetic protection and rotary handle—ideal for industrial motor protection. Built for durability with 100kA breaking capacity and screw clamp terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 2.5 to 4A, thermal magnetic, screw clamp terminals, rotary handle
Brand: Clipsal
SKU: GV2P08
Alternatively Known As: TeSys GV2 Circuit Breaker, Motor Protection Breaker, Thermal Magnetic Breaker
Technical Specifications
- Rated current: 4A
- Rated operational voltage: 690V AC 50/60Hz
- Mechanical durability: 100,000 cycles
- Electrical durability: 100,000 cycles for AC-3 at 415V
- Breaking capacity: 100kA Icu at 400V
- Thermal protection adjustment range: 2.5-4A
- Magnetic tripping current: 74A
- Rated insulation voltage: 690V AC
- Rated impulse withstand voltage: 6kV
- Dimensions (H x L x W): 89mm x 97mm x 45mm
- Weight: 0.324 kg
Key Features
- Thermal-magnetic protection with a setting range of 2.5-4A.
- High breaking capacity of 100kA at 400V.
- Connection via screw clamp terminals.
- Start-stop control using a rotary knob with a durability of 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection for 3-phase applications
- Commercial: Suitable for various motor-driven equipment
Standards & Compliance
- Complies with IEC 60947-2 and IEC 60947-4-1 standards.
Environmental Benefits
- Green Premium compliant (RoHS/REACh).
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys GV2 Motor Circuit Breaker is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.
