Motor Circuit Breaker 3P 0.25-0.4A | Thermal Magnetic | Rotary Handle by Clipsal
Motor circuit breaker with 0.25-0.4A thermal-magnetic protection and rotary handle—ideal for industrial motor protection. Built for durability with 100kA breaking capacity and screw clamp terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

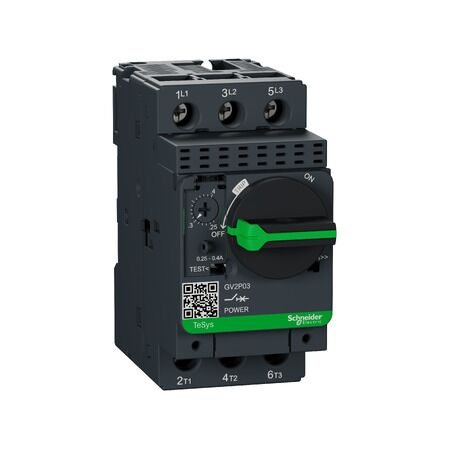

Product Name/Title: TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 0.25 to 0.4A, thermal magnetic, screw clamp terminals, rotary handle
Brand: Clipsal
SKU: GV2P03
Alternatively Known As: TeSys GV2 Circuit Breaker, Motor Protection Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated current: 0.4A
- Rated operational voltage: 690V AC 50/60Hz
- Trip unit technology: thermal-magnetic
- Poles description: 3P
- Network type: AC
- Utilisation category: category A
- Breaking capacity: 100kA Icu at 400V AC
- Mechanical durability: 100,000 cycles
- Electrical durability: 100,000 cycles for AC-3 at 415V
- Dimensions (H x L x W): 89mm x 97mm x 45mm
- Weight: 0.26 kg
Key Features
- Thermal-magnetic protection with a setting range of 0.25-0.4A.
- High breaking capacity of 100kA at 400V.
- Connection via screw clamp terminals.
- Start-stop control by rotary knob with 100,000 cycles durability.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in 3-phase applications
Standards & Compliance
- Complies with IEC 60947-2 for safety and performance standards.
Environmental Benefits
- Green Premium compliant (RoHS/REACh).
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys GV2 Motor Circuit Breaker is available now for immediate purchase. Ideal for industrial motor protection applications.
