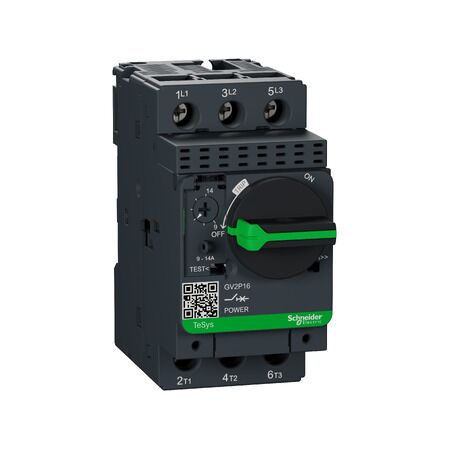

Motor Circuit Breaker 9-14A | Thermal Magnetic | Rotary Handle by Clipsal
Motor circuit breaker with 9-14A thermal-magnetic protection and rotary handle—ideal for industrial motor protection. Built for durability with screw clamp terminals and high breaking capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: TeSys GV2, Motor circuit breaker, TeSys Deca, 3P, 9 to 14A, thermal magnetic, screw clamp terminals, rotary handle
Brand: Clipsal
SKU: GV2P16
Alternatively Known As: TeSys GV2 Circuit Breaker, Motor Protection Breaker, Thermal Magnetic Circuit Breaker
Technical Specifications
- Rated current: 14A
- Rated operational voltage: 690V AC 50/60Hz
- Trip unit technology: thermal-magnetic
- Poles: 3P
- Breaking capacity: 100kA Icu at 400V AC
- Mechanical durability: 100,000 cycles
- Electrical durability: 100,000 cycles for AC-3 at 415V
- Power dissipation per pole: 2.5W
- Rated insulation voltage: 690V AC
- Rated impulse withstand voltage: 6kV
- Dimensions (H x L x W): 89mm x 97mm x 45mm
- Weight: 0.336 kg
Key Features
- Thermal-magnetic protection with a setting range of 9-14A.
- High breaking capacity of 15kA at 400V.
- Connection via screw clamp terminals.
- Start-stop control using a rotary knob with a durability of 100,000 cycles.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection for 3-phase applications
- Commercial: Suitable for various motor-driven equipment
Standards & Compliance
- Complies with IEC 60947-2 for safety and performance standards.
Environmental Benefits
- Green Premium compliant (RoHS/REACh).
Warranty Information
18 months warranty against manufacturing defects.
Available Now
The TeSys GV2 Motor Circuit Breaker is available now for immediate purchase. Ideal for industrial applications requiring reliable motor protection.
