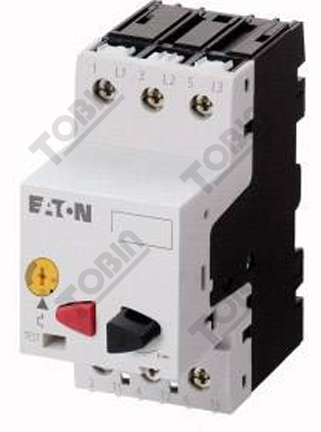

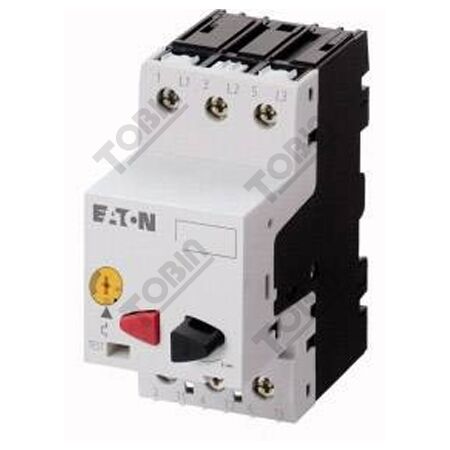

Motor Circuit Breaker Eaton 0.4 - 0.63A | Push Button Operation | Reliable Overload Protection | by Tobin
The Motor Circuit Breaker Eaton 0.4 - 0.63A is designed for effective motor protection, featuring a push button operation and reliable overload and short circuit protection. Ideal for industrial motor applications and machinery control panels, this breaker ensures compliance with electrical safety standards while extending equipment life and improving energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Motor Circuit Breaker Eaton 0.4 - 0.63A | Push Button Operation | Reliable Overload Protection | by Tobin
Brand: Tobin
SKU: PKZM01-0.63
Alternatively Known As: Motor Protective Circuit Breaker, Motor Overload Breaker, PKZM01 Circuit Breaker
Technical Specifications
- Current Rating: 0.4-0.63A
- Type: Push button motor protective circuit breaker
- Category: Eaton Switchgear
- Sub-category: PKZM01 motor protective circuit breakers
- Dimensions (H x L x W): 85mm x 70mm x 45mm
- Weight: 0.5 kg
Key Features
- Motor protective circuit breaker with push button type operation
- Current rating from 0.4 to 0.63 Amps
- Reliable motor overload and short circuit protection
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical safety standards.
Applications
- Industrial motor protection
- Machinery control panels
- Electrical switchgear assemblies
Standards & Compliance
- Complies with AS/NZS 60947-2 – Low-voltage switchgear and controlgear - Circuit-breakers
Environmental Benefits
- Protects motors from damage, reducing waste and extending equipment life
- Helps improve energy efficiency by preventing motor faults
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Motor Circuit Breaker Eaton 0.4 - 0.63A by Tobin is available now for immediate purchase. Ideal for industrial motor protection and control applications.
