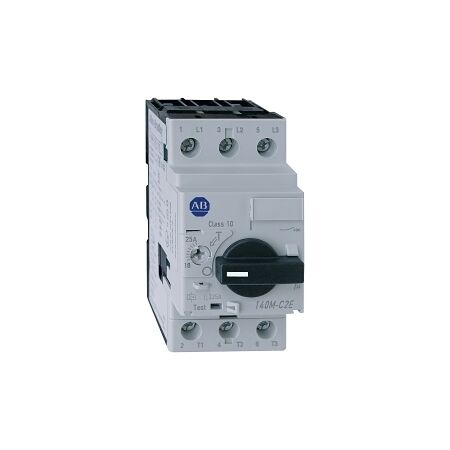

Motor Circuit Protector 0.4A | 3 Poles | 415V | IP2X by NHP

BRAND: NHP
SKU: 140MC2NA40
$486.60 List price: $646.20
+
Motor circuit protector with 0.4A rated current and 3 poles—ideal for industrial and commercial motor protection. Built for reliability, with 415V operation and IP2X protection.

Product Name/Title: Allen-Bradley 140M Motor Circuit Protector 0.4A

Brand: NHP

SKU: 140MC2NA40

Alternatively Known As: Motor Circuit Breaker, Circuit Protector, Motor Protection Device

Technical Specifications
  • Rated current: 0.4 A
  • Number of poles: 3
  • Max rated operation voltage: 415 V
  • Rated ultimate short circuit breaking capacity: 100 kA
  • Rated frequency: 60 Hz
  • Over voltage category: III
  • Type of electrical connection: Screw connection
  • Degree of protection: IP2X
  • Maximum operating temperature: 60 °C
  • Dimensions (H x L x W): 90mm x 100mm x 45mm
  • Weight: 1.0 kg
Key Features
  • Rated current: 0.4 A
  • 3 poles for enhanced circuit protection
  • Max rated operation voltage: 415 V
  • Rated short circuit breaking capacity: 100 kA
  • IP2X protection degree
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in manufacturing and processing plants
  • Commercial: Electrical distribution in commercial buildings
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Efficient protection reduces electrical failures, minimizing waste and downtime.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140M Motor Circuit Protector 0.4A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.

Non-Returnable & Non-Cancellable

140MC2NA40-AU-Motor-Circuit-Protector-Datasheet.pdf (140MC2NA40-AU-Motor-Circuit-Protector-Datasheet.pdf, 276 Kb) [Download]
